Overview

This page bundles the available data for the Rosario Basin in the South America. The images are hyperlinks and will open up a separate window with a high resolution PDF image of the map.
The basin data is derived from a lower resolution grid which has been upsampled using GMT. This could have introduced an accuracy which is beyond the original data resolution.

Select data to display:

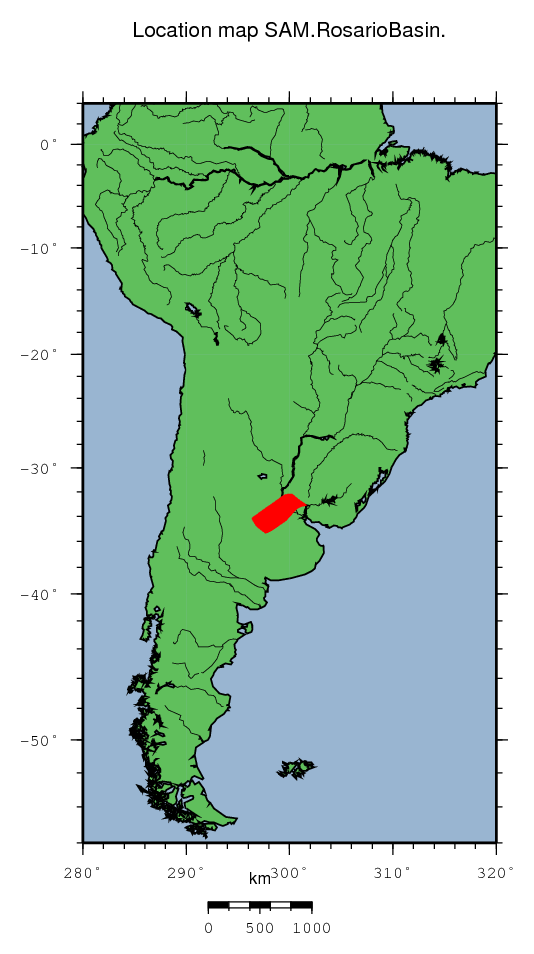

Rosario Basin location map
Basin name Rosario Basin
Region code SAM
Basin ID 2570
Plate location/code /
Basin cross section

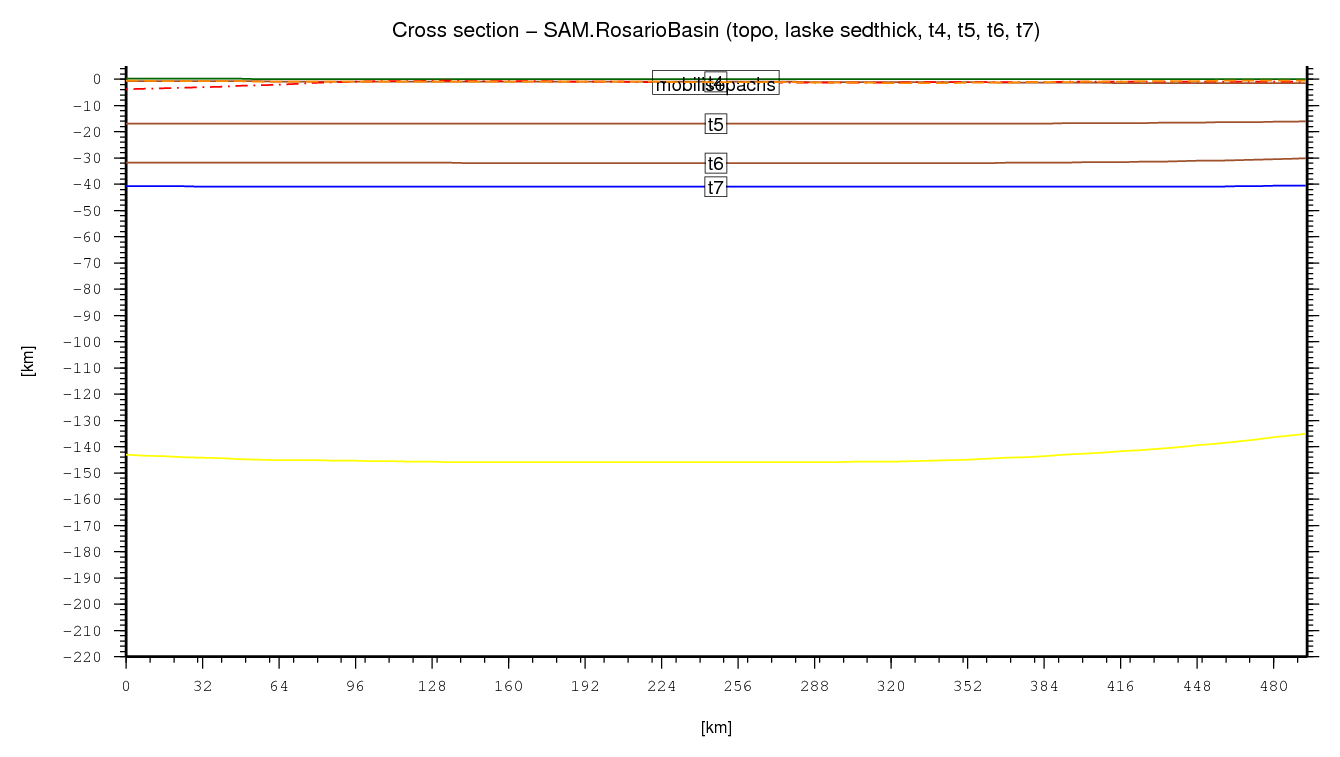

The basin cross section is automatically generated using the available crustal structure data sets. Sometimes the data labels are not plotted correctly, depending on the length of the section.

The location of the profile is indicated in all maps as dashed-dotted thin black line. For the endpoints of the profile, the two points of a given polygon located farthest away from each other were computed.

Rosario Basin cross section
↑ back to the top
Dynamic topography evolution for basin centroid

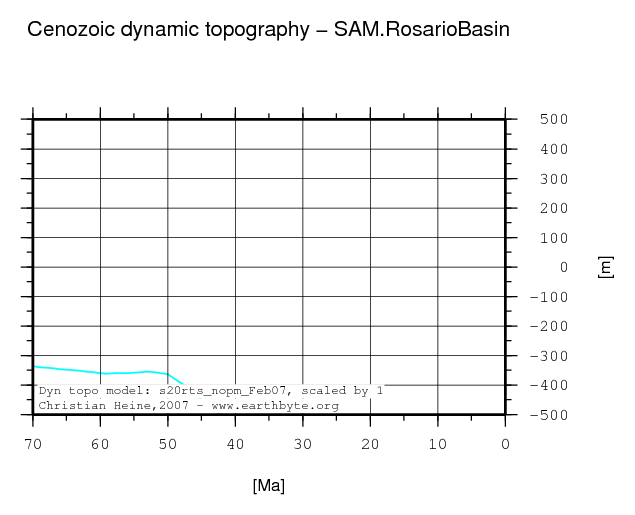

Rosario Basin dynamic topography through time

The dynamic topography history for the basin is derived by tracking the basin centroid. The paleo-location for this point is computed using the EarthByte plate kinematic framework rotating the position back in time.

The dynamic topography model is derived from the S20RTS seismic tomography model (Ritsema et al., 99) by converting seismic velocites to density anomalies using an empirical scaling factor of 0.25. The density anomalies are then advected back in time to compute mantle flow with plate motions superimposed (using the EarthByte plate rotation framework) as surface boundary conditions. The dynamic topography is then derived from the computed density distribution using a free upper boundary. For details regarding the methodology see the following papers:

  • B. Steinberger, H. Schmeling, and G. Marquart. Large-scale lithospheric stress field and topography induced by global mantle circulation. Earth Planet. Sci. Lett., 186:75-91, 2001.
    doi: 10.1016/S0012-821X(01)00229-1.
  • B. Steinberger. Effects of latent heat release at phase boundaries on flow in the Earth's mantle, phase boundary topography and dynamic topography at the Earth's surface. Phys. Earth Planet. Int., 164:2-20, 2007.
    doi: 10.1016/j.pepi.2007.04.021.

↑ back to the top

Observations

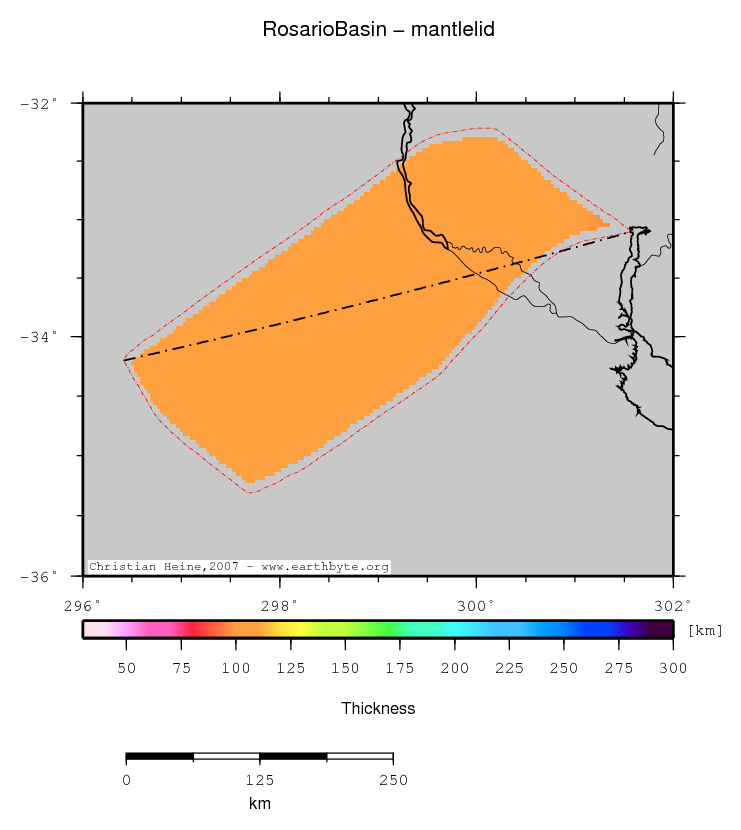

Mantle Lid thickness
Rosario Basin location map
Statistics - Mantle Lid thickness
Median 104.815
Mean 104.309
Scale 0.222
stdev 1.202
Z_min/Location 94.621/-33.1°Lat -58.4333°Lon
Z_max/Location 105.000/ -33.0°Lat -60.0°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

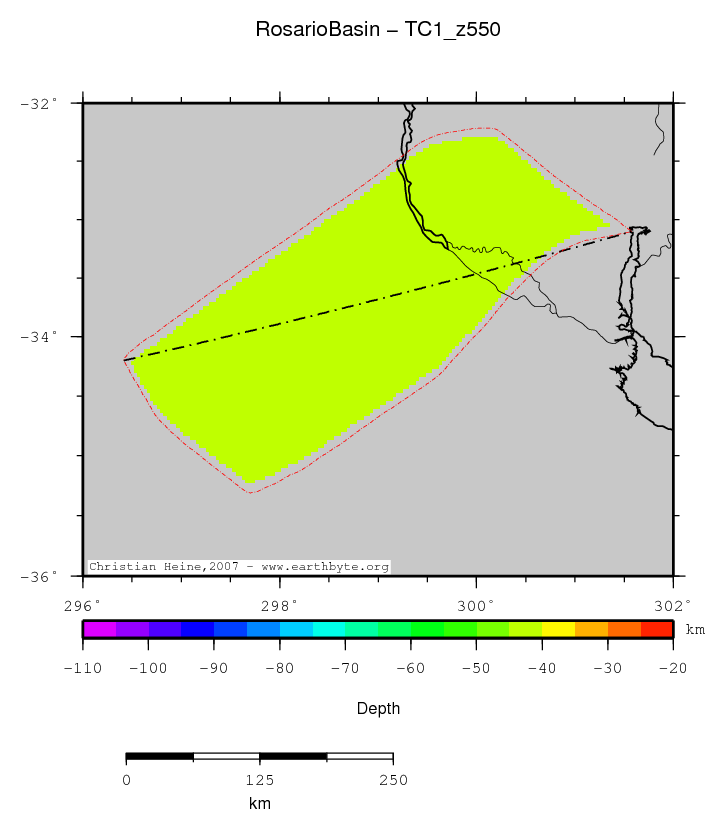

Depth of 550 deg isotherm
Rosario Basin location map
Statistics - Depth of 550 deg isotherm
Median -41.997
Mean -41.912
Scale 0.005
stdev 0.237
Z_min/Location -42.001/-34.3°Lat -62.3333°Lon
Z_max/Location -39.976/ -33.1°Lat -58.4333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top
Mobil isopachs
Rosario Basin location map
Statistics - Mobil isopachs
Median 1.308
Mean 1.457
Scale 0.376
stdev 0.612
Z_min/Location 0.468/-33.6333°Lat -62.7°Lon
Z_max/Location 4.131/ -34.5°Lat -63.3667°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top
Plain crustal thickness

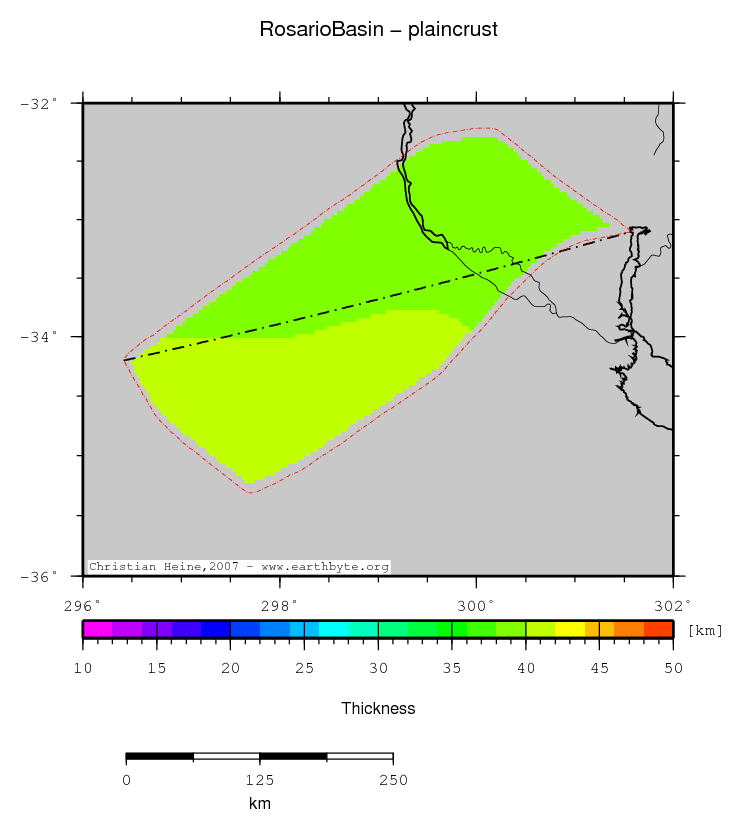

Rosario Basin location map
Statistics - Plain crustal thickness
Median 39.938
Mean 39.815
Scale 0.217
stdev 0.305
Z_min/Location 38.960/-33.1°Lat -58.4333°Lon
Z_max/Location 40.294/ -34.6°Lat -60.8667°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

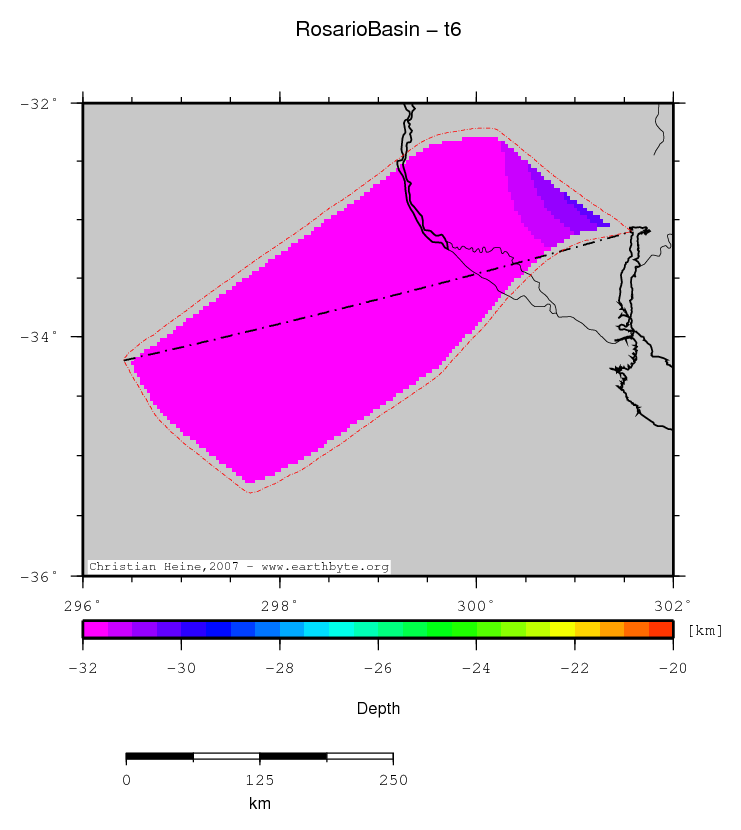

Base middle crust
Rosario Basin location map
Statistics - Base middle crust
Median -31.903
Mean -31.852
Scale 0.100
stdev 0.312
Z_min/Location -32.322/-32.3667°Lat -60.6°Lon
Z_max/Location -30.008/ -33.0333°Lat -58.5333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

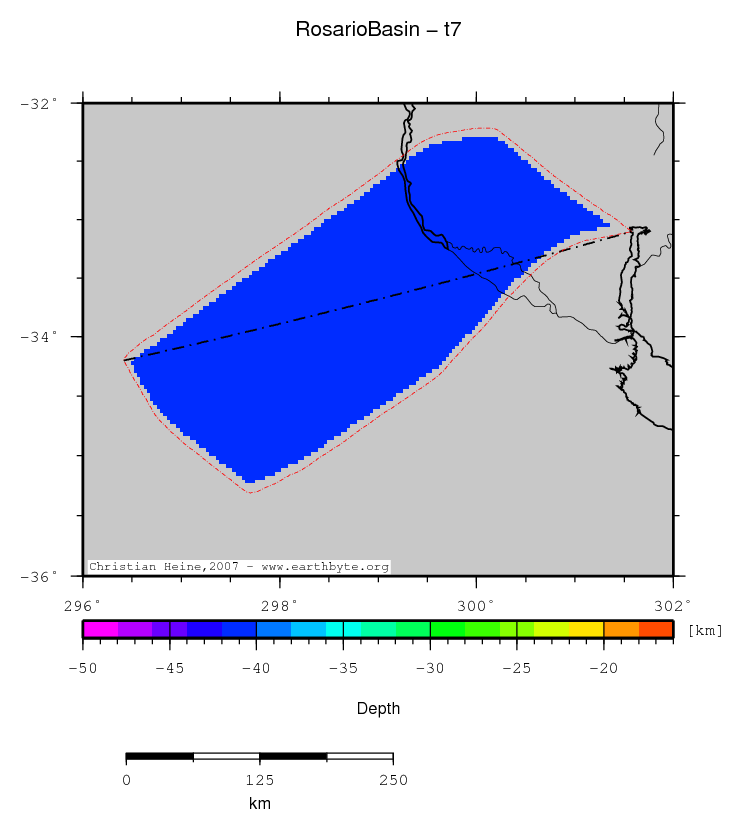

Base lower crust
Rosario Basin location map
Statistics - Base lower crust
Median -40.911
Mean -40.900
Scale 0.071
stdev 0.088
Z_min/Location -41.068/-32.3667°Lat -60.6°Lon
Z_max/Location -40.432/ -32.8°Lat -58.9333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

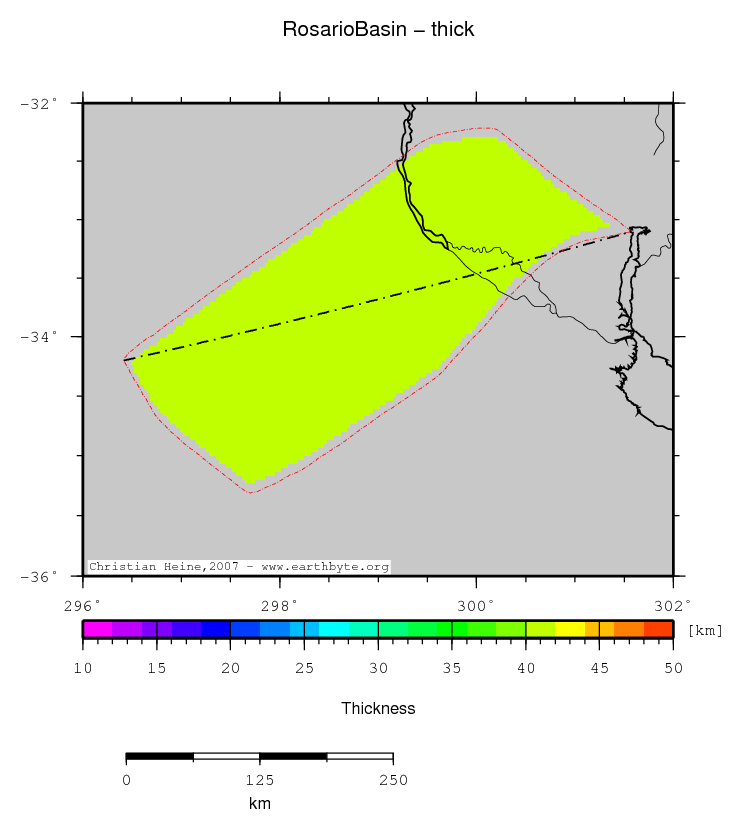

Total crustal thickness
Rosario Basin location map
Statistics - Total crustal thickness
Median 41.007
Mean 40.998
Scale 0.028
stdev 0.092
Z_min/Location 40.461/-32.8°Lat -58.9333°Lon
Z_max/Location 41.160/ -34.7333°Lat -61.1°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

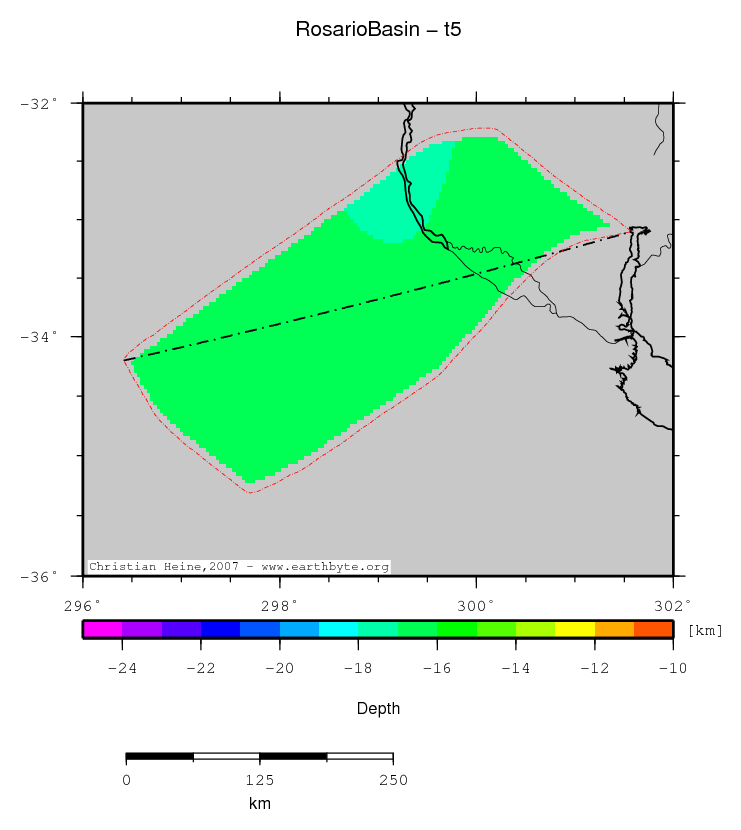

Base upper crust
Rosario Basin location map
Statistics - Base upper crust
Median -16.898
Mean -16.867
Scale 0.063
stdev 0.158
Z_min/Location -17.108/-32.4°Lat -60.6667°Lon
Z_max/Location -15.972/ -32.9°Lat -58.7667°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

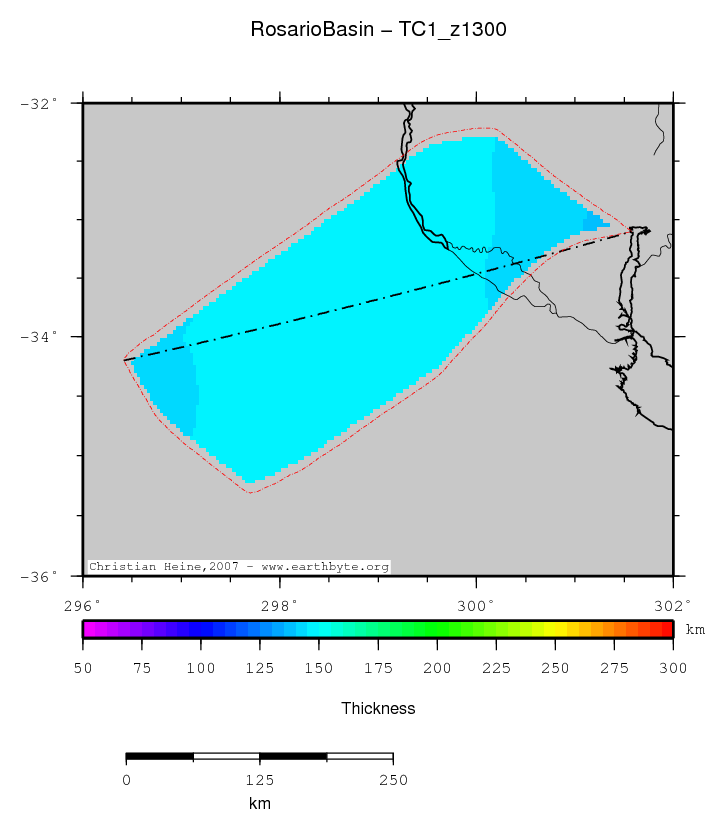

Thermal lithospheric thickness
Rosario Basin location map
Statistics - Thermal lithospheric thickness
Median 145.849
Mean 145.306
Scale 0.211
stdev 1.271
Z_min/Location 135.130/-33.1°Lat -58.4333°Lon
Z_max/Location 146.000/ -33.0°Lat -61.0°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

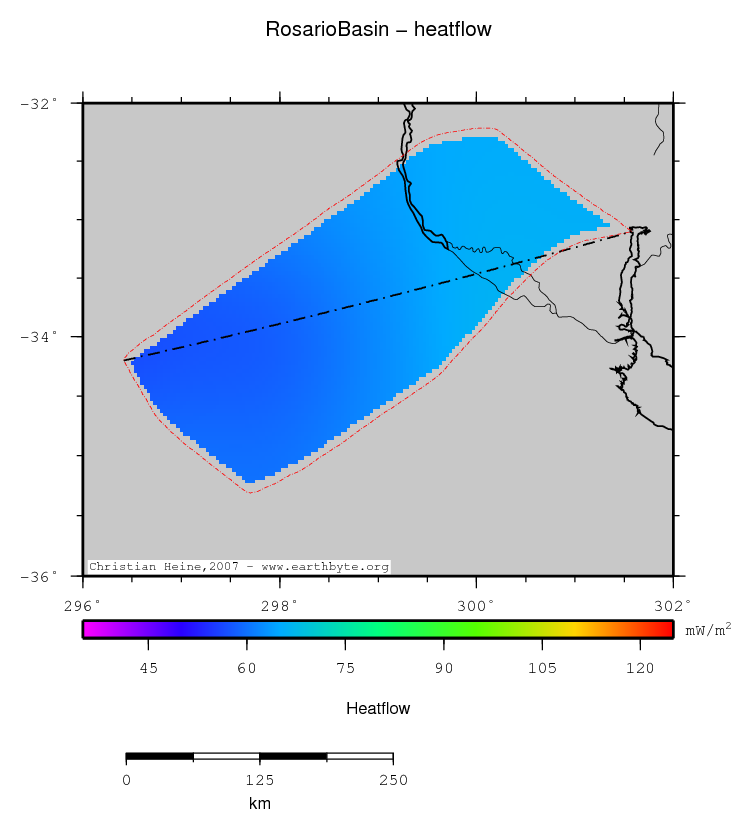

Heatflow
Rosario Basin location map
Statistics - Heatflow
Median 62.078
Mean 62.045
Scale 4.300
stdev 2.956
Z_min/Location 56.628/-34.1°Lat -63.4667°Lon
Z_max/Location 66.291/ -33.6667°Lat -59.7°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

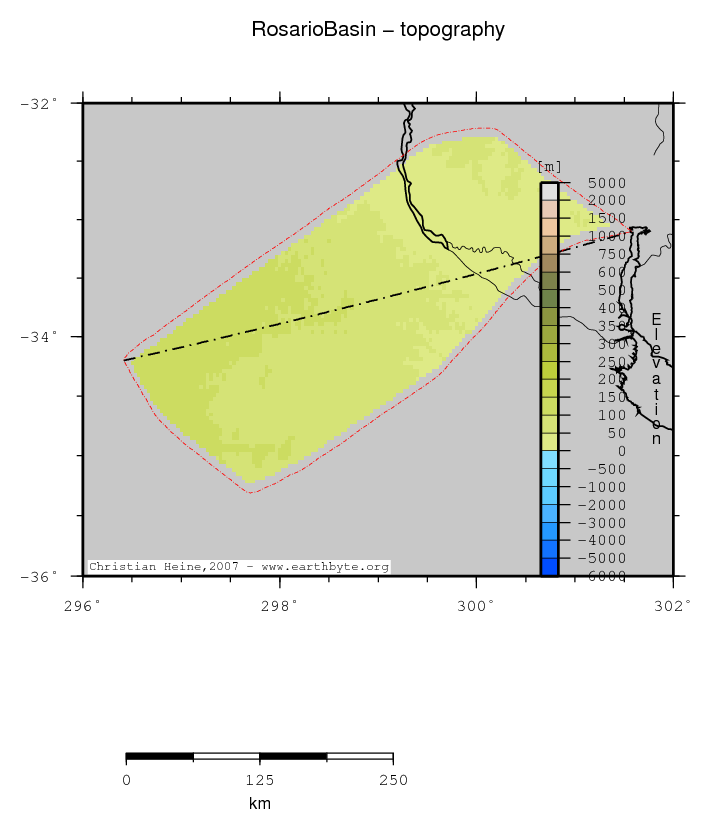

Topography (ETOPO2)
Rosario Basin location map
Statistics - Topography (ETOPO2)
Median 73.000
Mean 67.069
Scale 41.513
stdev 36.754
Z_min/Location 2.000/-33.1333°Lat -59.3°Lon
Z_max/Location 139.000/ -33.8333°Lat -63.0333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

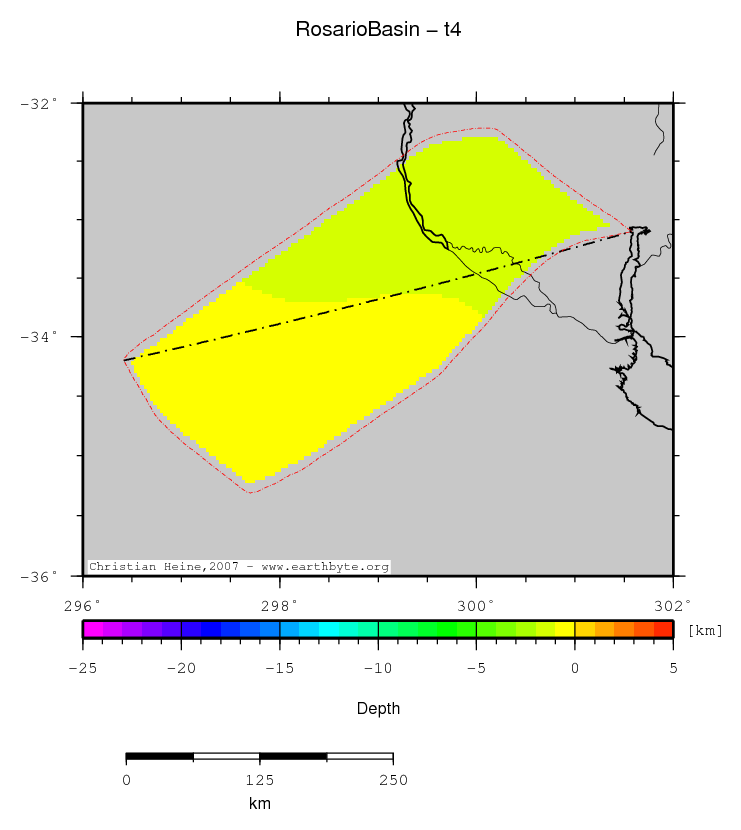

Base hard sediments
Rosario Basin location map
Statistics - Base hard sediments
Median -0.964
Mean -1.085
Scale 0.246
stdev 0.302
Z_min/Location -1.867/-32.3°Lat -60.4667°Lon
Z_max/Location -0.752/ -34.6°Lat -60.8667°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top
Temperature at 50km depth
Rosario Basin location map
Statistics - Temperature at 50km depth
Median 659.400
Mean 660.850
Scale 0.511
stdev 3.854
Z_min/Location 658.994/-32.7667°Lat -61.2333°Lon
Z_max/Location 693.432/ -33.1°Lat -58.4333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

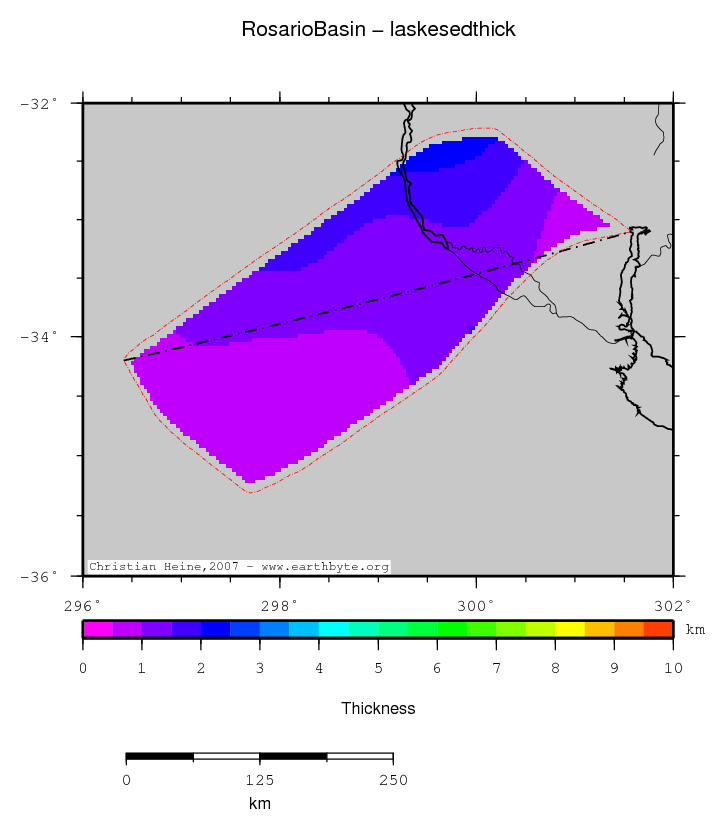

Laske sediment thickness
Rosario Basin location map
Statistics - Laske sediment thickness
Median 1.137
Mean 1.170
Scale 0.444
stdev 0.400
Z_min/Location 0.481/-34.9°Lat -61.4°Lon
Z_max/Location 2.424/ -32.3°Lat -60.4667°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

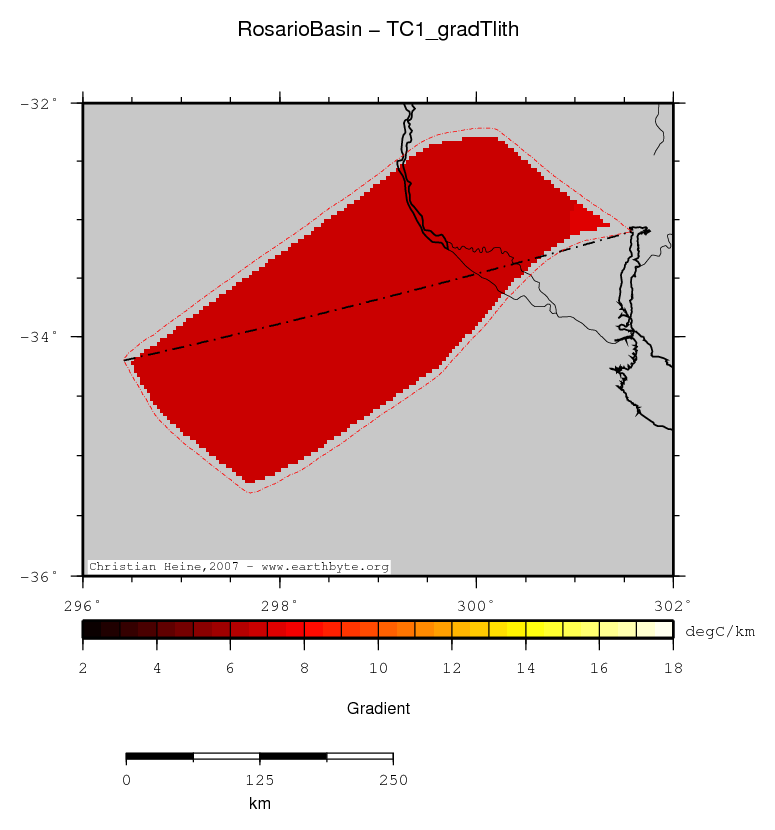

Lithospheric temperature gradient
Rosario Basin location map
Statistics - Lithospheric temperature gradient
Median 6.689
Mean 6.722
Scale 0.016
stdev 0.074
Z_min/Location 6.675/-34.6°Lat -60.8667°Lon
Z_max/Location 7.155/ -33.1°Lat -58.4333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

Computations

Isostatic correction

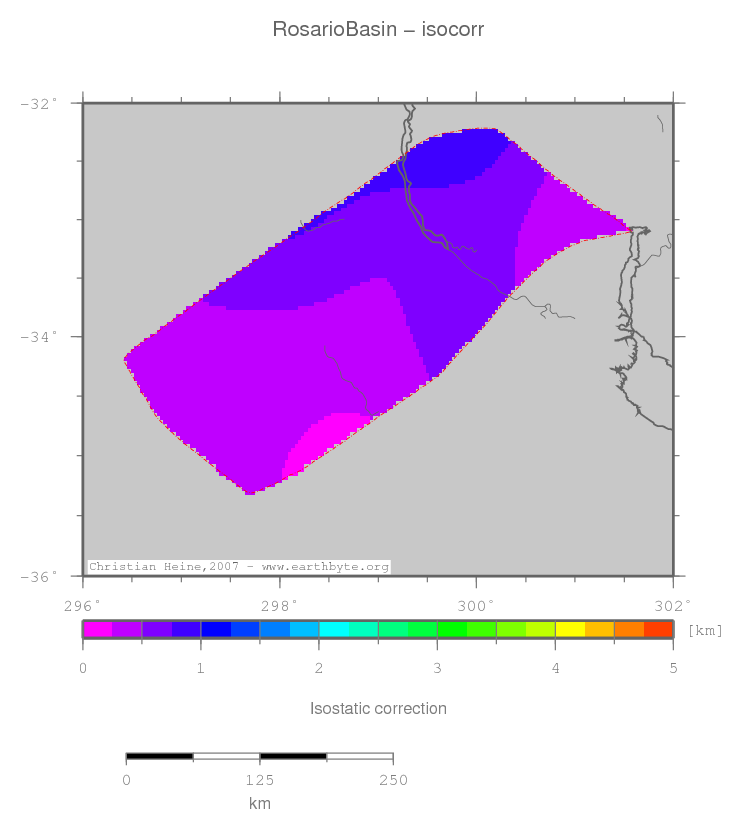

Rosario Basin location map
Statistics - Isostatic correction
Median 0.480
Mean 0.492
Scale 0.182
stdev 0.163
Z_min/Location 0.206/-34.9°Lat -61.4°Lon
Z_max/Location 0.991/-32.3°Lat -60.4667°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

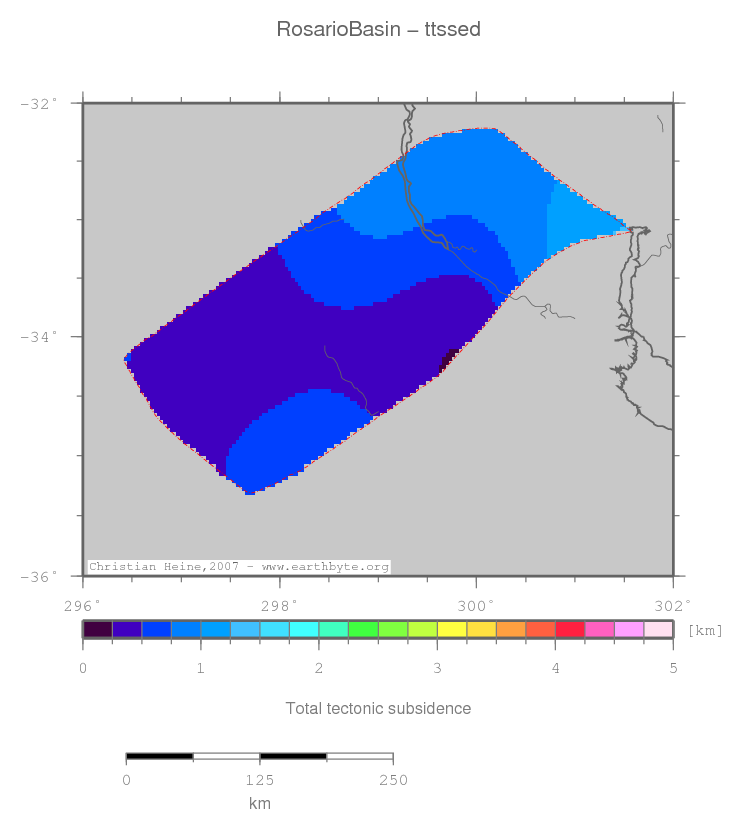

TTS (sediment)
Rosario Basin location map
Statistics - TTS (sediment)
Median 0.509
Mean 0.593
Scale 0.121
stdev 0.200
Z_min/Location 0.237/-34.2°Lat -60.2667°Lon
Z_max/Location 1.281/-33.1°Lat -58.4333°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

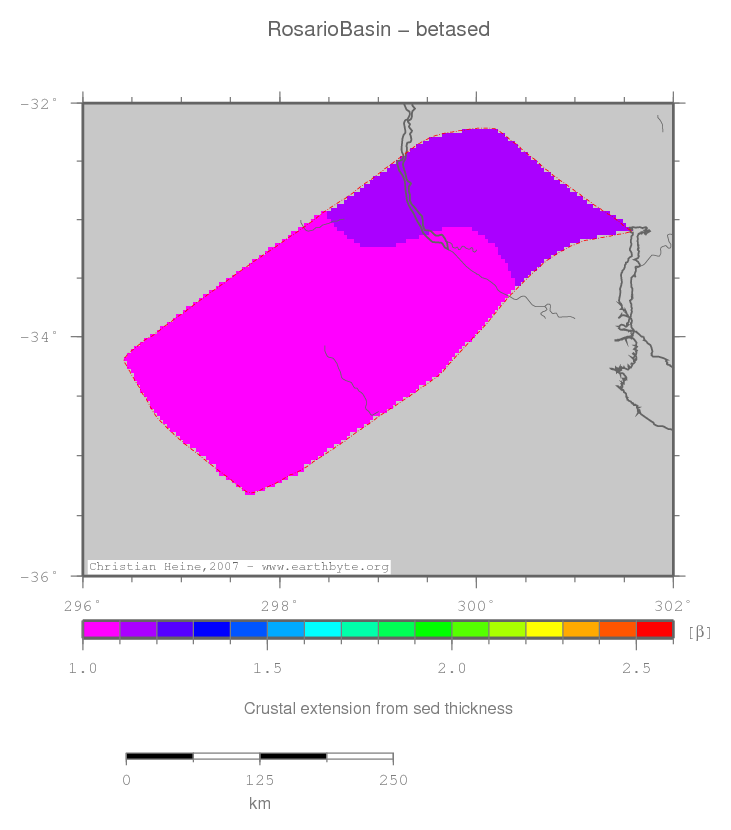

Beta (Sediment)
Rosario Basin location map
Statistics - Beta (Sediment)
Median 1.070
Mean 1.083
Scale 0.018
stdev 0.031
Z_min/Location 1.031/-34.2°Lat -60.2667°Lon
Z_max/Location 1.196/-33.1°Lat -58.4333°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

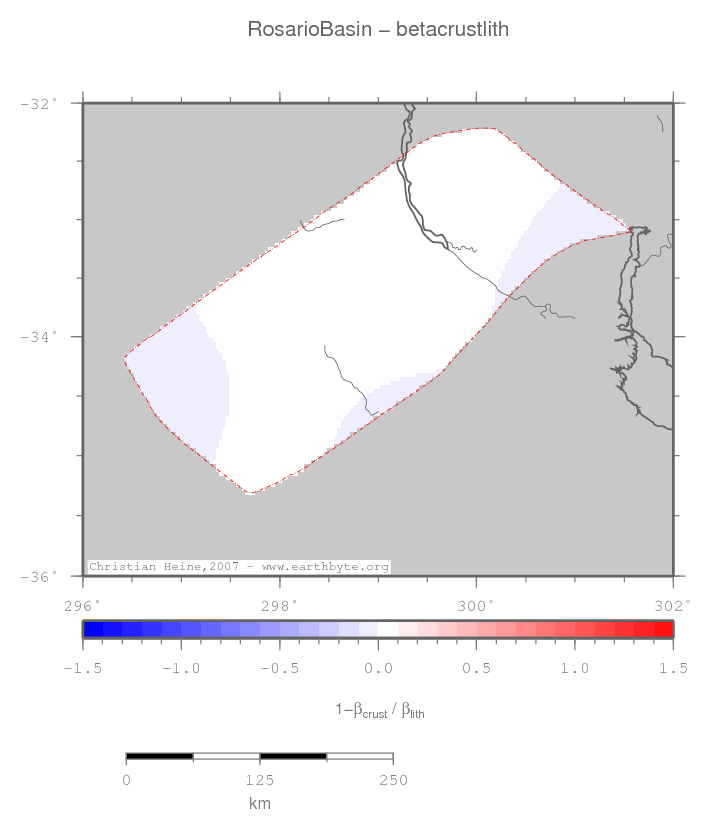

Crustal vs lithosph. extn.
Rosario Basin location map
Statistics - Crustal vs lithosph. extn.
Median 0.004
Mean 0.005
Scale 0.006
stdev 0.009
Z_min/Location -0.048/-33.1°Lat -58.4333°Lon
Z_max/Location 0.025/-32.2333°Lat -60.1333°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

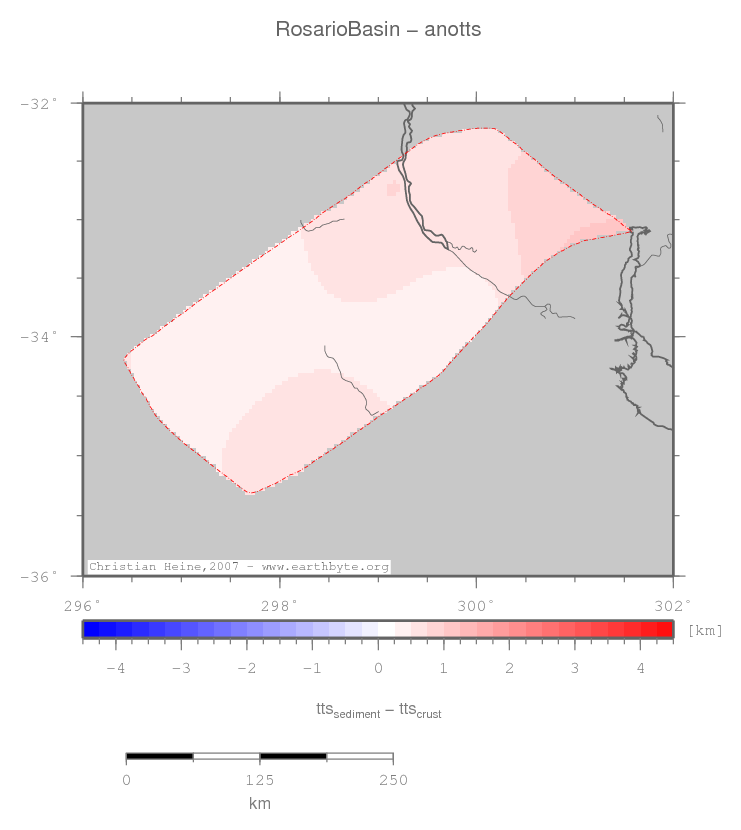

Anomalous TTS
Rosario Basin location map
Statistics - Anomalous TTS
Median 0.510
Mean 0.557
Scale 0.112
stdev 0.149
Z_min/Location 0.260/-34.1667°Lat -60.2333°Lon
Z_max/Location 1.094/-33.1333°Lat -58.6°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

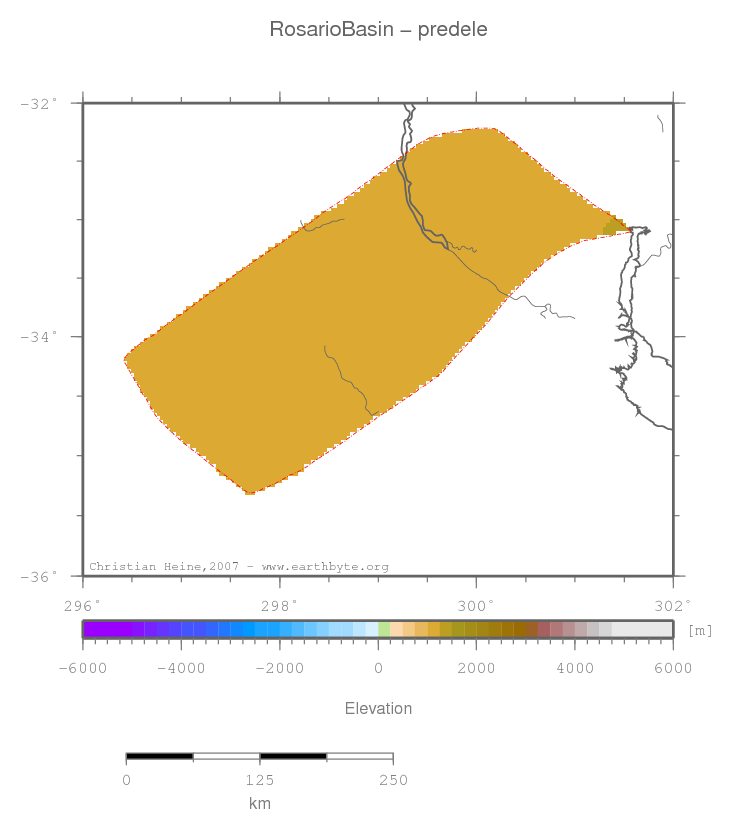

Predicted elevation
Rosario Basin location map
Statistics - Predicted elevation
Median 1139.290
Mean 1144.950
Scale 5.249
stdev 17.062
Z_min/Location 1134.010/-33.0°Lat -60.0°Lon
Z_max/Location 1287.240/-33.1°Lat -58.4333°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

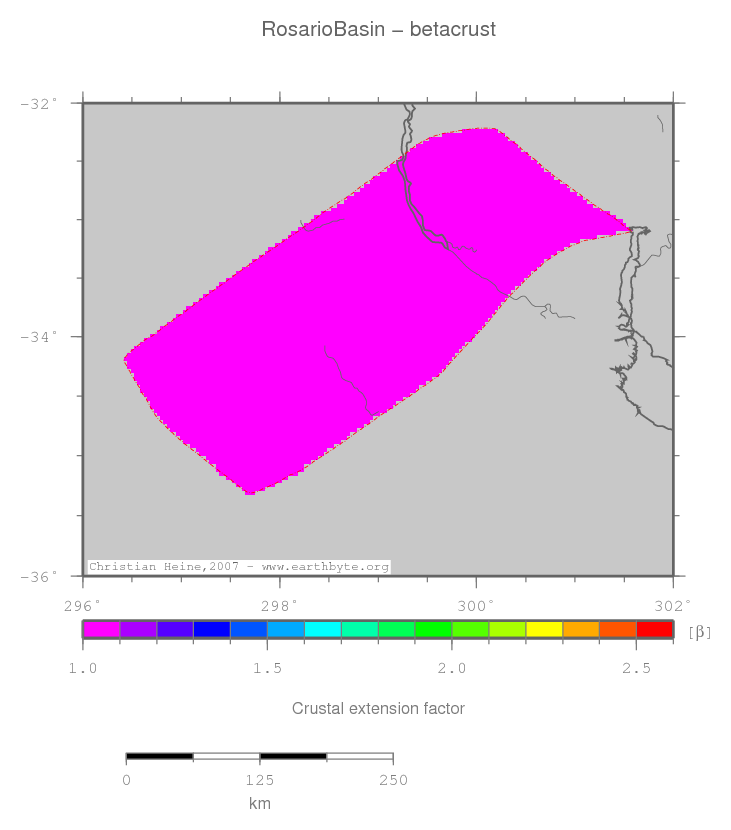

Beta (Crust)
Rosario Basin location map
Statistics - Beta (Crust)
Median 1.002
Mean 1.005
Scale 0.005
stdev 0.008
Z_min/Location 0.993/-34.6°Lat -60.8667°Lon
Z_max/Location 1.027/-33.1°Lat -58.4333°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

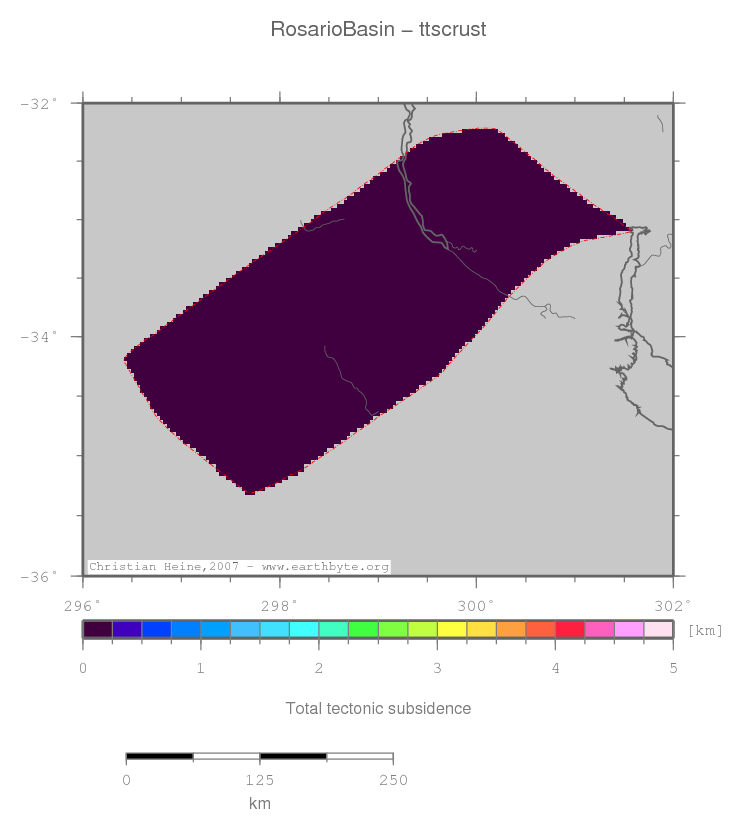

TTS (crust)
Rosario Basin location map
Statistics - TTS (crust)
Median 0.012
Mean 0.036
Scale 0.042
stdev 0.060
Z_min/Location -0.058/-34.6°Lat -60.8667°Lon
Z_max/Location 0.203/-33.1°Lat -58.4333°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

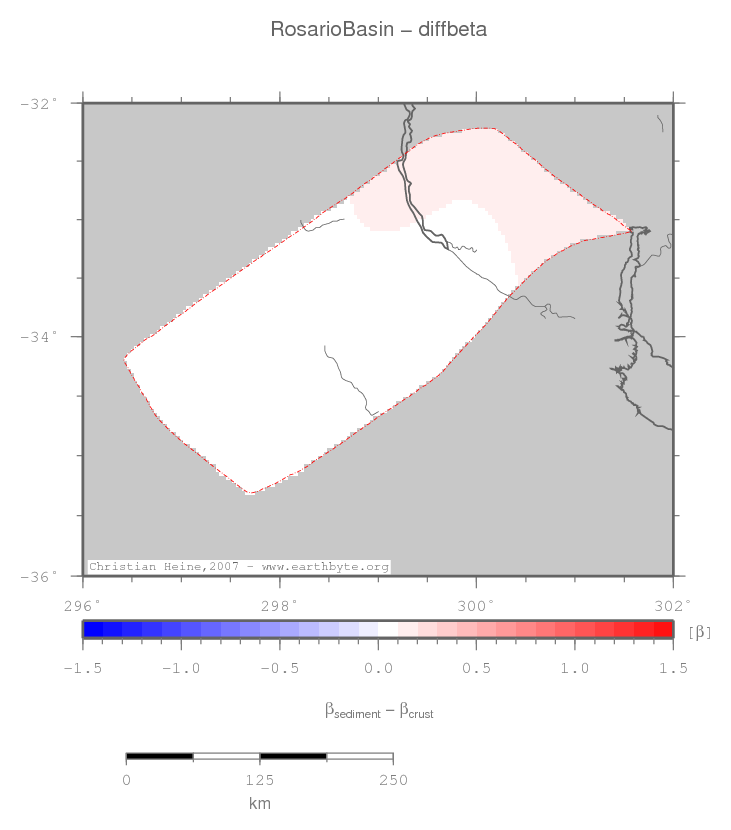

Differential Beta
Rosario Basin location map
Statistics - Differential Beta
Median 0.070
Mean 0.078
Scale 0.016
stdev 0.024
Z_min/Location 0.034/-34.1667°Lat -60.2333°Lon
Z_max/Location 0.171/-33.1333°Lat -58.6°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

This basin data is based on interpolated global grids and might contain gridding errors or wrongly interpolated data values.
