ICONS atlas: SIB - Yenisey-Khatanga Basin

Regional basin list

To view the data for individual basins, select a basin from the dropdown menu below or click the basin name in the overview table. This will open a separate page with detailed maps.

Click here to return to the regional overview page

Overview

This page bundles the available data for the Yenisey-Khatanga Basin in the Siberian region. The images are hyperlinks and will open up a separate window with a high resolution PDF image of the map.
The basin data is derived from a lower resolution grid which has been upsampled using GMT. This could have introduced an accuracy which is beyond the original data resolution.

Select data to display:

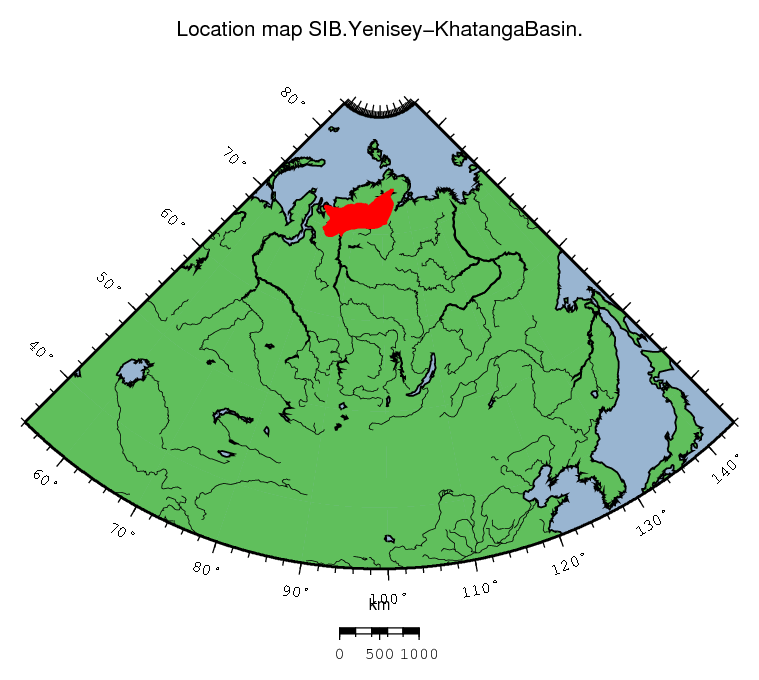

Yenisey-Khatanga Basin location map
Basin name Yenisey-Khatanga Basin
Region code SIB
Basin ID 4030
Plate location/code compress foreland/CMF
Basin cross section

The basin cross section is automatically generated using the available crustal structure data sets. Sometimes the data labels are not plotted correctly, depending on the length of the section.

The location of the profile is indicated in all maps as dashed-dotted thin black line. For the endpoints of the profile, the two points of a given polygon located farthest away from each other were computed.

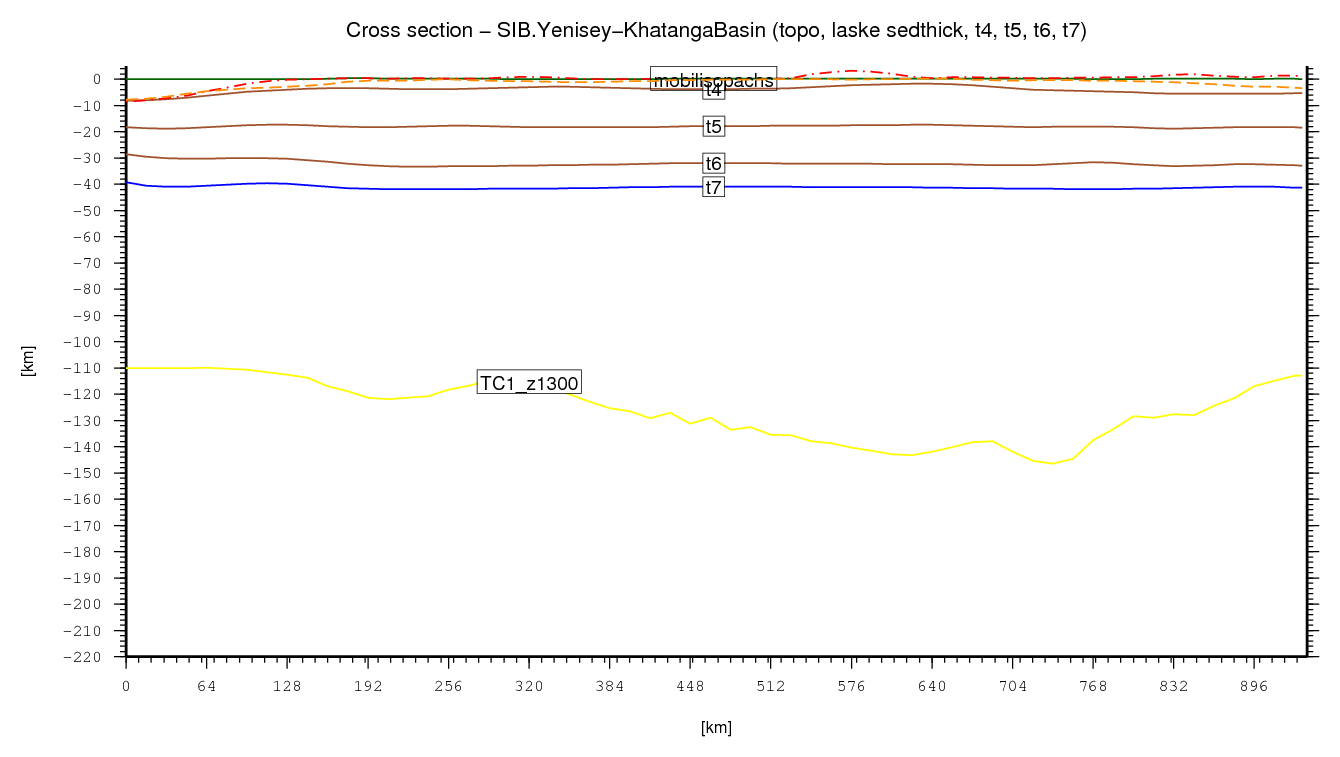

Yenisey-Khatanga Basin cross section
↑ back to the top

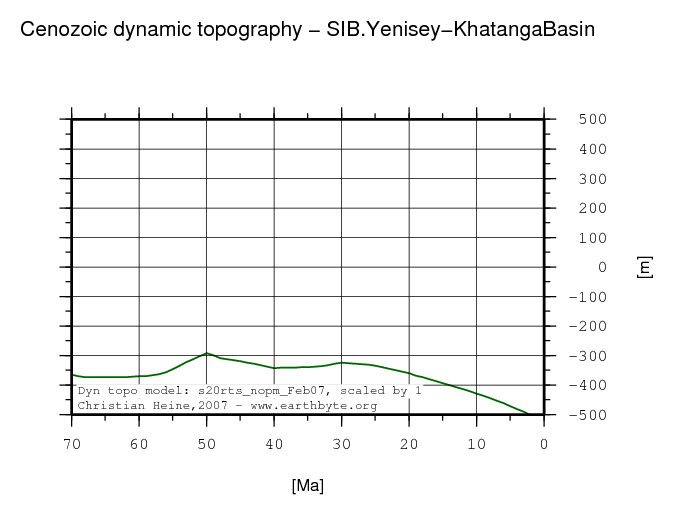

Dynamic topography evolution for basin centroid
Yenisey-Khatanga Basin dynamic topography through time

The dynamic topography history for the basin is derived by tracking the basin centroid. The paleo-location for this point is computed using the EarthByte plate kinematic framework rotating the position back in time.

The dynamic topography model is derived from the S20RTS seismic tomography model (Ritsema et al., 99) by converting seismic velocites to density anomalies using an empirical scaling factor of 0.25. The density anomalies are then advected back in time to compute mantle flow with plate motions superimposed (using the EarthByte plate rotation framework) as surface boundary conditions. The dynamic topography is then derived from the computed density distribution using a free upper boundary. For details regarding the methodology see the following papers:

  • B. Steinberger, H. Schmeling, and G. Marquart. Large-scale lithospheric stress field and topography induced by global mantle circulation. Earth Planet. Sci. Lett., 186:75-91, 2001.
    doi: 10.1016/S0012-821X(01)00229-1.
  • B. Steinberger. Effects of latent heat release at phase boundaries on flow in the Earth's mantle, phase boundary topography and dynamic topography at the Earth's surface. Phys. Earth Planet. Int., 164:2-20, 2007.
    doi: 10.1016/j.pepi.2007.04.021.

↑ back to the top

Observations

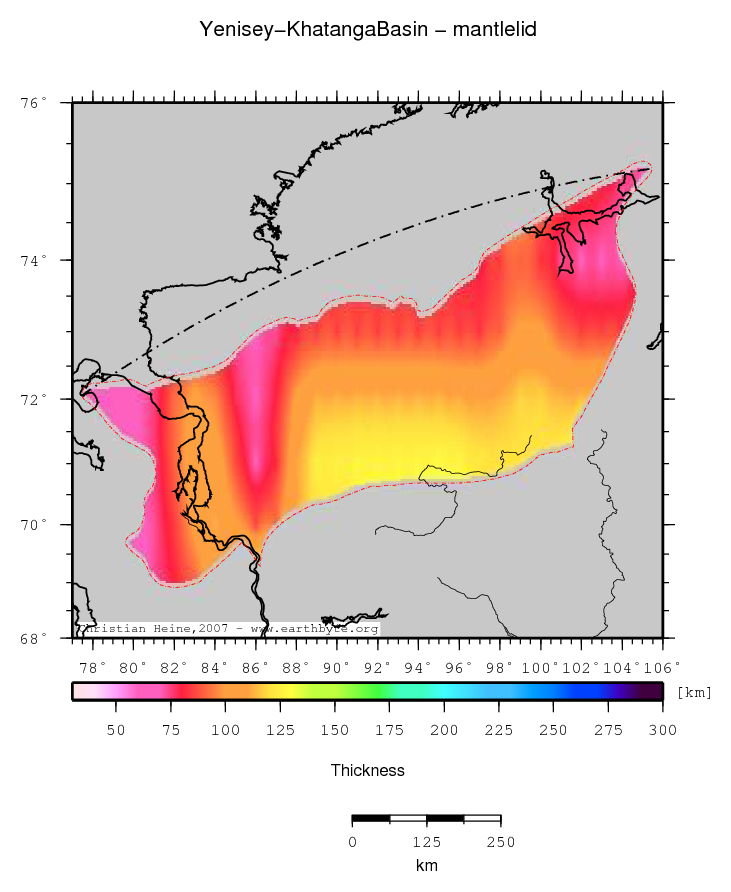

Mantle Lid thickness
Yenisey-Khatanga Basin location map
Statistics - Mantle Lid thickness
Median 94.738
Mean 96.782
Scale 20.383
stdev 16.961
Z_min/Location 64.242/69.6667°Lat 79.6333°Lon
Z_max/Location 130.273/ 71.0°Lat 95.0°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

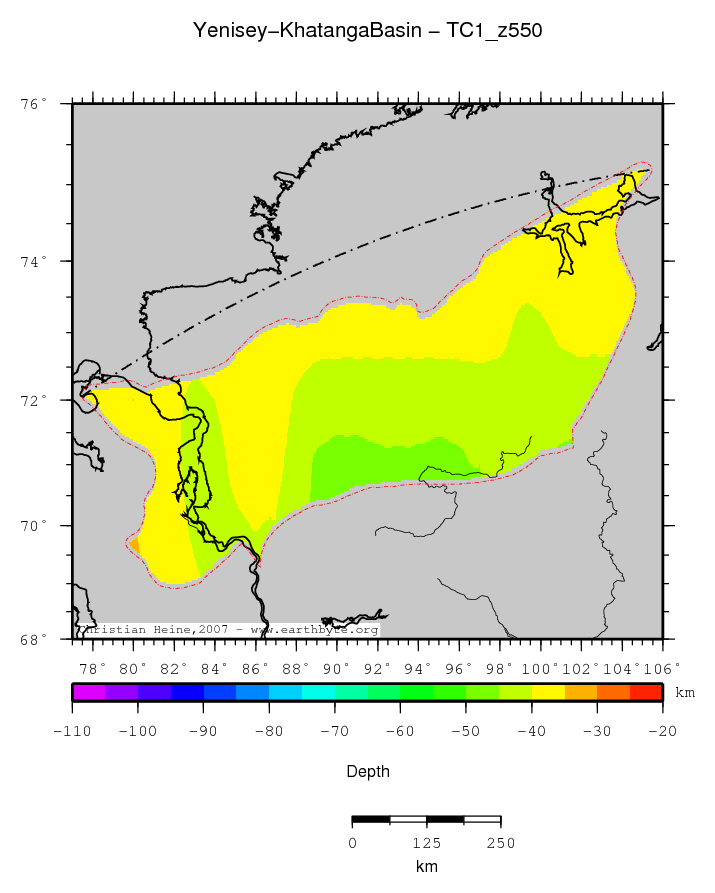

Depth of 550 deg isotherm
Yenisey-Khatanga Basin location map
Statistics - Depth of 550 deg isotherm
Median -39.822
Mean -40.289
Scale 3.457
stdev 3.030
Z_min/Location -47.000/71.0°Lat 90.0°Lon
Z_max/Location -34.196/ 69.6667°Lat 79.6333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

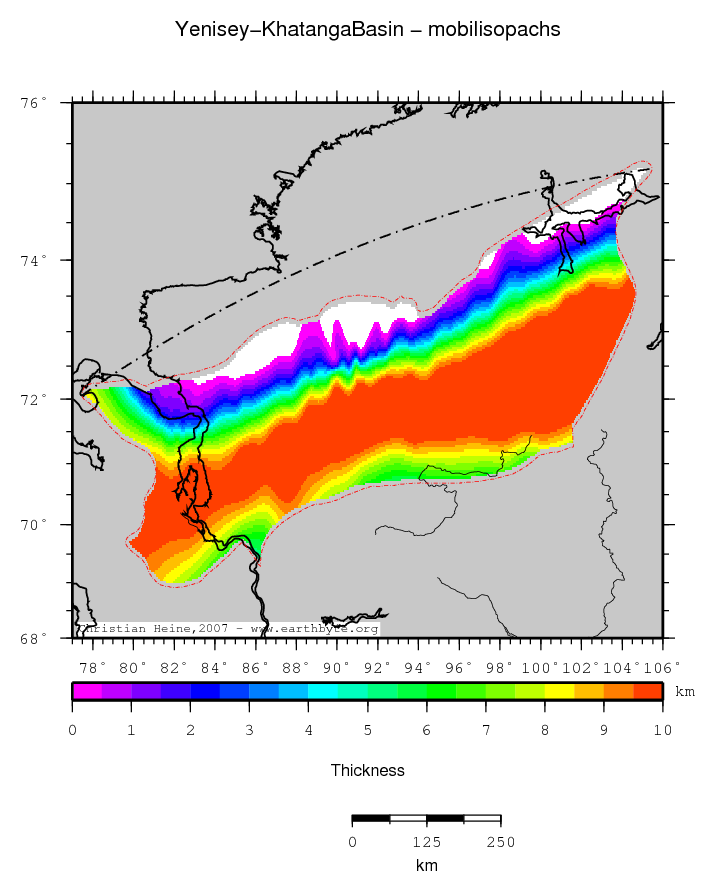

Mobil isopachs
Yenisey-Khatanga Basin location map
Statistics - Mobil isopachs
Median 8.324
Mean 7.000
Scale 3.552
stdev 4.104
Z_min/Location -1.887/73.4667°Lat 93.6333°Lon
Z_max/Location 12.806/ 72.7°Lat 101.533°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

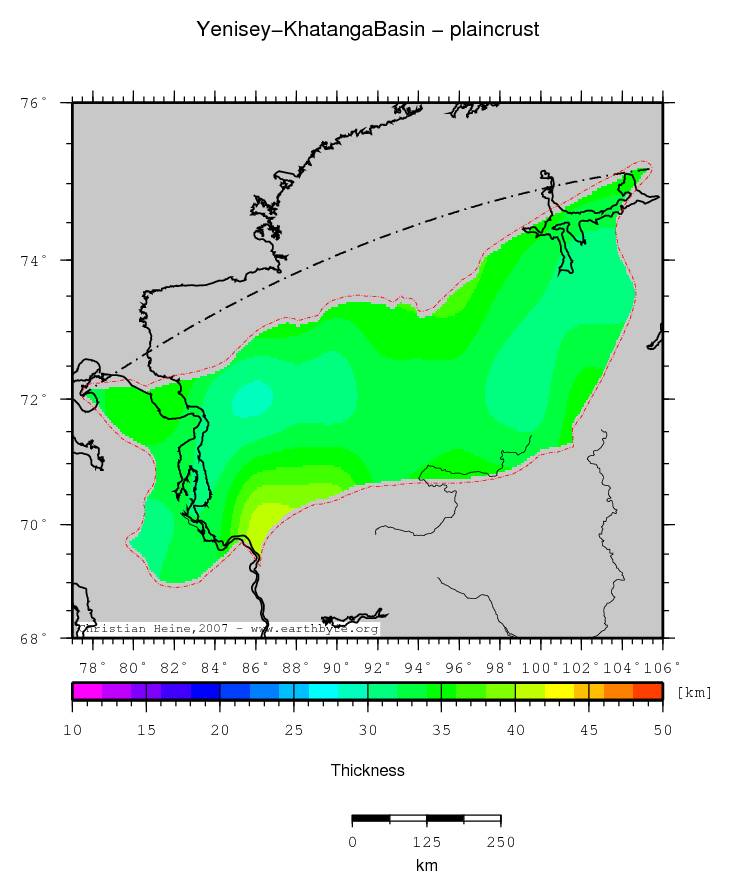

Plain crustal thickness
Yenisey-Khatanga Basin location map
Statistics - Plain crustal thickness
Median 33.076
Mean 33.341
Scale 1.803
stdev 2.037
Z_min/Location 29.500/72.0°Lat 86.0°Lon
Z_max/Location 41.966/ 69.7333°Lat 86.5°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

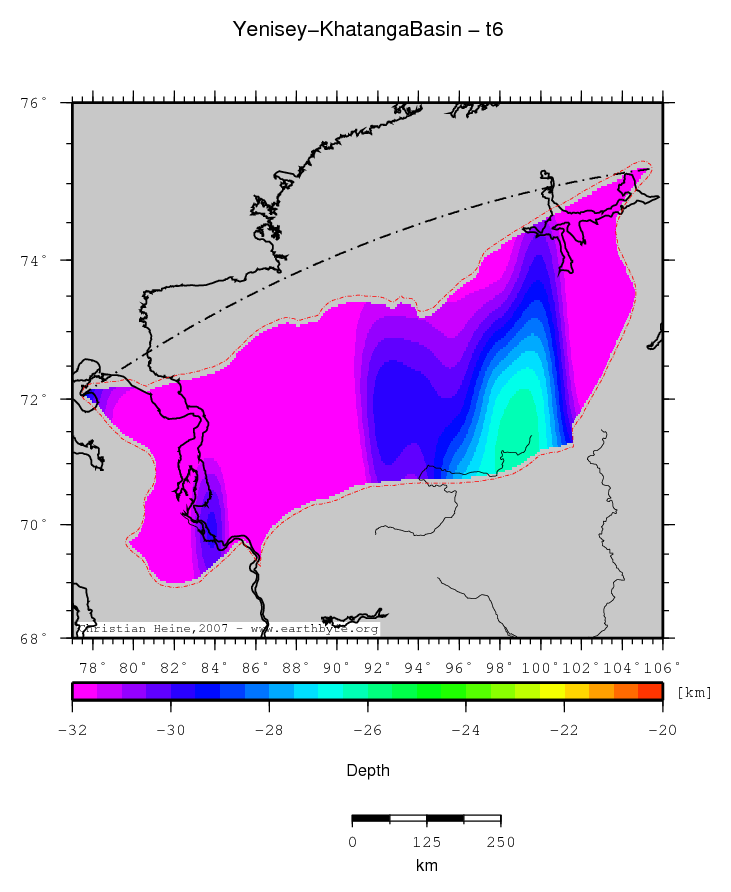

Base middle crust
Yenisey-Khatanga Basin location map
Statistics - Base middle crust
Median -31.829
Mean -31.431
Scale 1.882
stdev 2.183
Z_min/Location -36.361/70.0667°Lat 86.6333°Lon
Z_max/Location -26.097/ 71.4333°Lat 98.9667°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

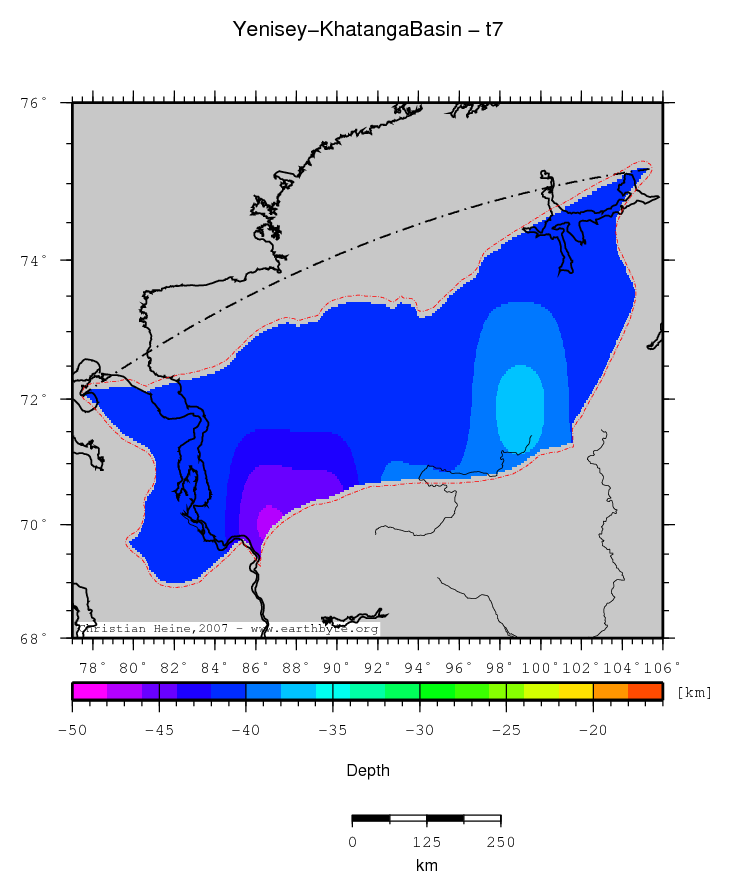

Base lower crust
Yenisey-Khatanga Basin location map
Statistics - Base lower crust
Median -40.887
Mean -40.919
Scale 0.394
stdev 1.479
Z_min/Location -46.278/70.0°Lat 86.6333°Lon
Z_max/Location -37.452/ 71.9°Lat 99.0°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

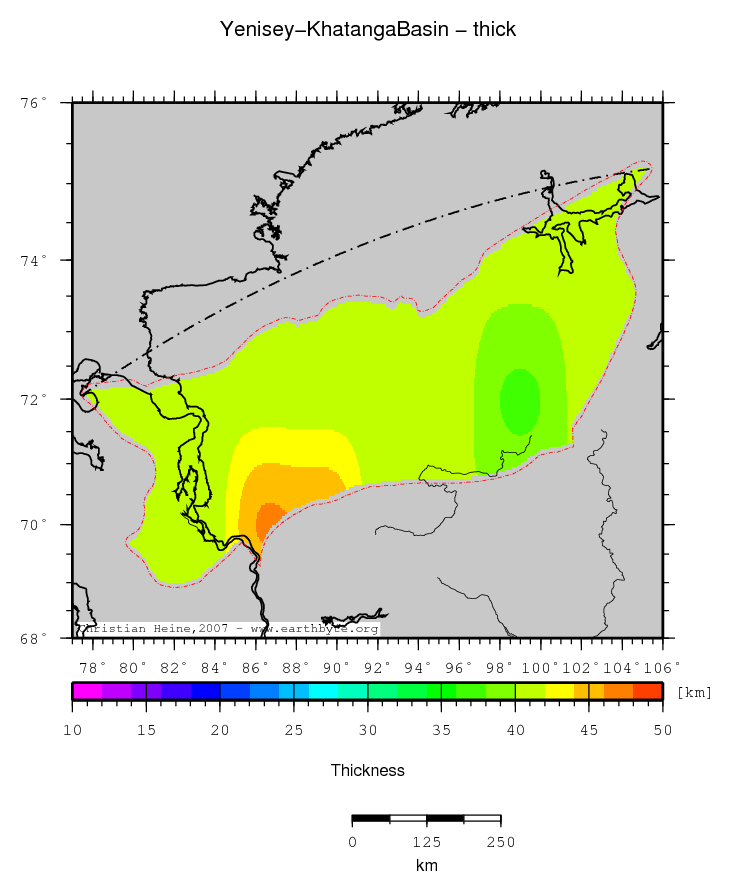

Total crustal thickness
Yenisey-Khatanga Basin location map
Statistics - Total crustal thickness
Median 41.000
Mean 41.059
Scale 0.349
stdev 1.445
Z_min/Location 37.625/72.0°Lat 99.0°Lon
Z_max/Location 46.370/ 70.0°Lat 86.6667°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

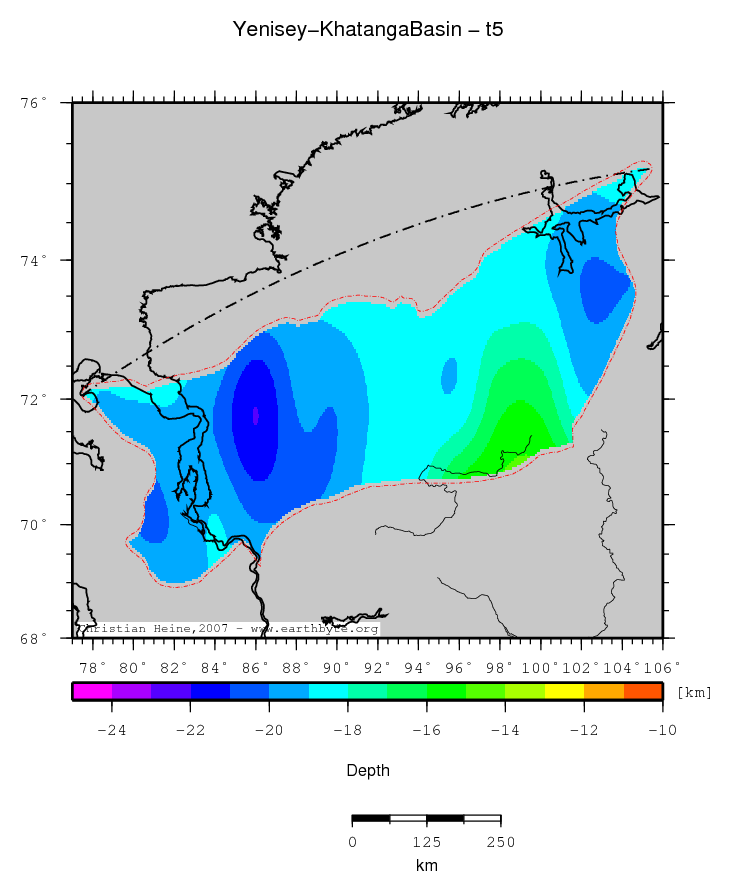

Base upper crust
Yenisey-Khatanga Basin location map
Statistics - Base upper crust
Median -19.161
Mean -19.037
Scale 0.957
stdev 1.276
Z_min/Location -22.026/71.7333°Lat 86.0°Lon
Z_max/Location -14.782/ 70.9°Lat 99.0°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

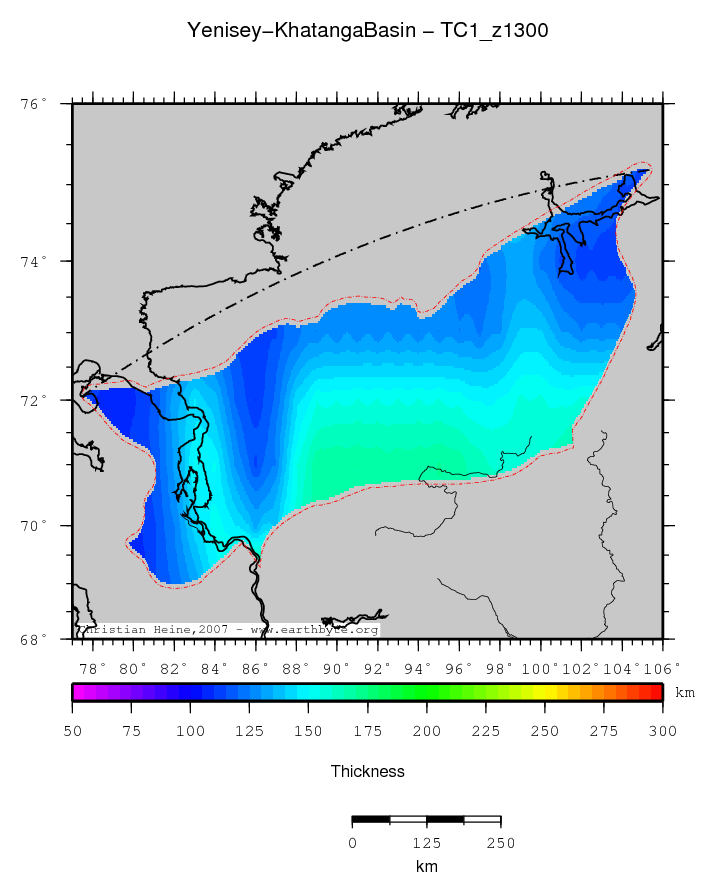

Thermal lithospheric thickness
Yenisey-Khatanga Basin location map
Statistics - Thermal lithospheric thickness
Median 135.927
Mean 137.841
Scale 19.901
stdev 16.812
Z_min/Location 104.492/69.6667°Lat 79.6333°Lon
Z_max/Location 172.428/ 69.3333°Lat 86.2333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

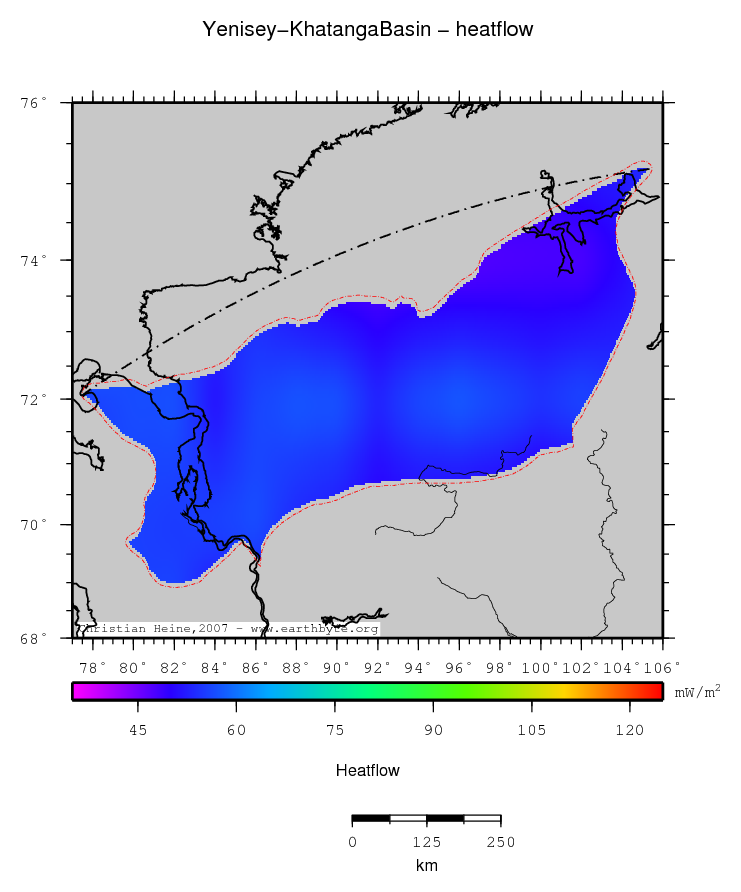

Heatflow
Yenisey-Khatanga Basin location map
Statistics - Heatflow
Median 54.156
Mean 53.552
Scale 2.414
stdev 2.463
Z_min/Location 47.385/74.0333°Lat 97.1°Lon
Z_max/Location 57.334/ 71.9667°Lat 96.0°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

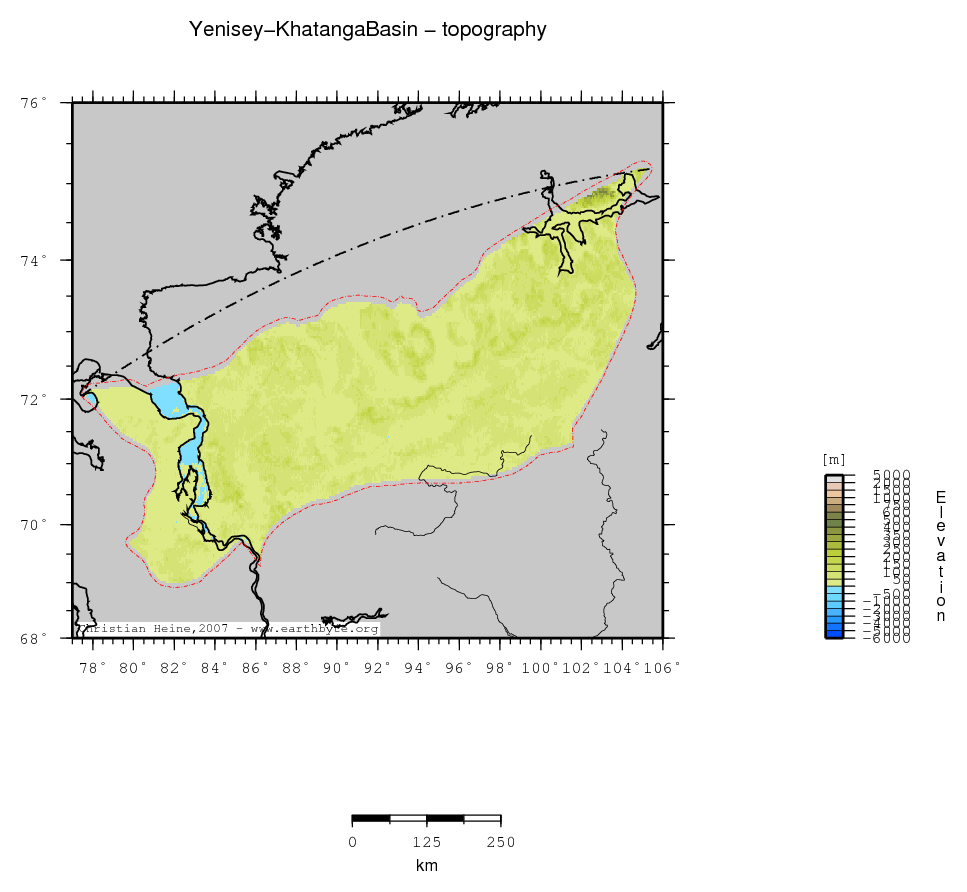

Topography (ETOPO2)
Yenisey-Khatanga Basin location map
Statistics - Topography (ETOPO2)
Median 51.000
Mean 56.853
Scale 35.582
stdev 42.288
Z_min/Location -7.000/70.0°Lat 83.4667°Lon
Z_max/Location 616.000/ 74.8667°Lat 102.067°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

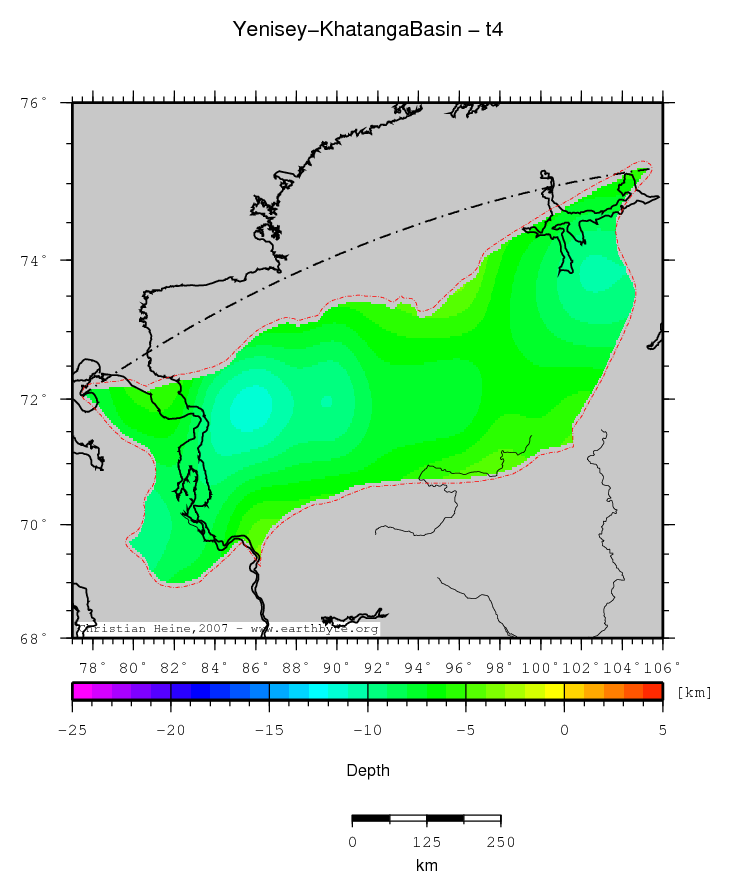

Base hard sediments
Yenisey-Khatanga Basin location map
Statistics - Base hard sediments
Median -7.482
Mean -7.578
Scale 1.729
stdev 1.588
Z_min/Location -11.491/71.9°Lat 85.9333°Lon
Z_max/Location -3.358/ 69.3333°Lat 86.2333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

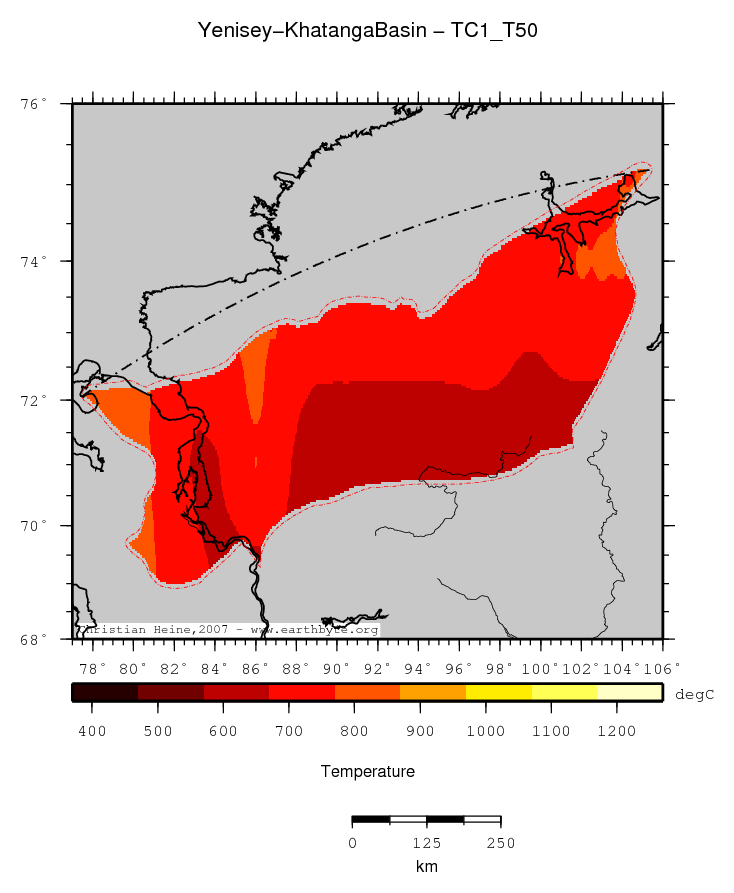

Temperature at 50km depth
Yenisey-Khatanga Basin location map
Statistics - Temperature at 50km depth
Median 702.712
Mean 696.911
Scale 63.488
stdev 53.130
Z_min/Location 596.000/71.0°Lat 95.0°Lon
Z_max/Location 816.264/ 69.6667°Lat 79.6333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

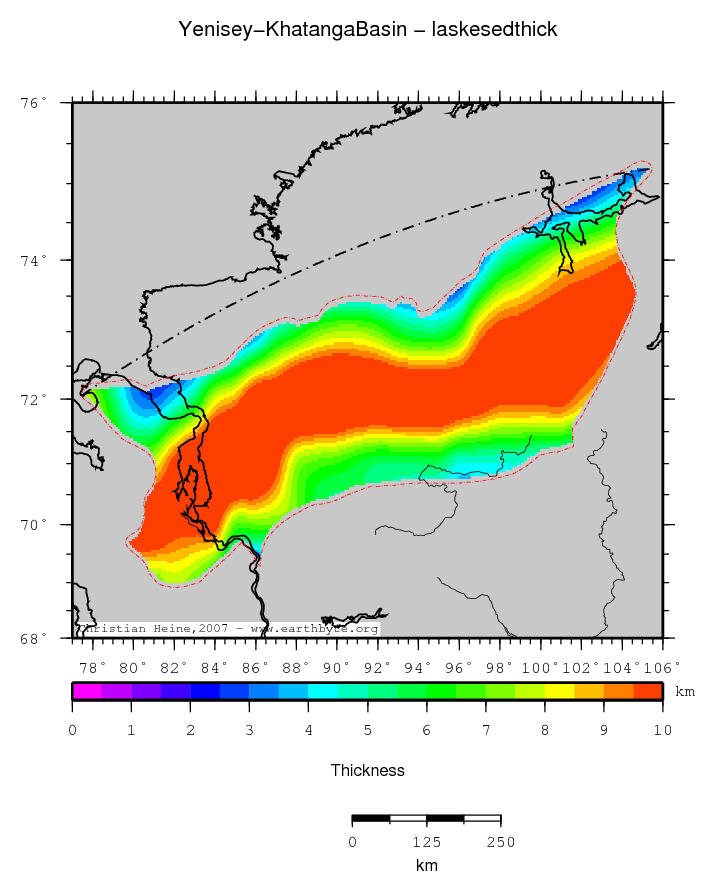

Laske sediment thickness
Yenisey-Khatanga Basin location map
Statistics - Laske sediment thickness
Median 8.677
Mean 8.243
Scale 2.808
stdev 2.482
Z_min/Location 2.059/74.9°Lat 102.067°Lon
Z_max/Location 12.551/ 71.1°Lat 85.2333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

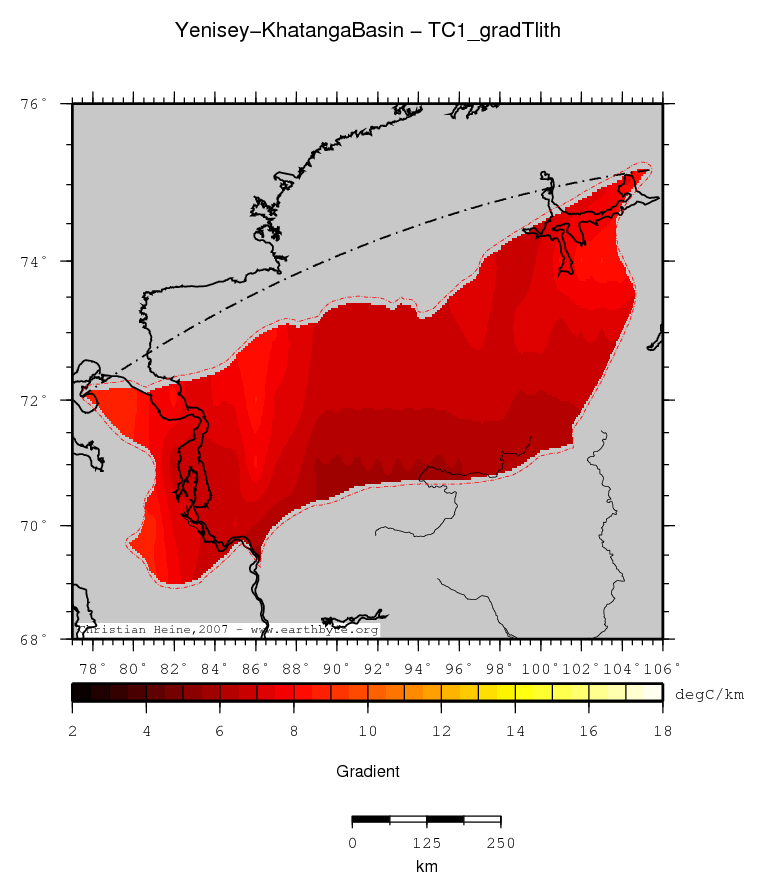

Lithospheric temperature gradient
Yenisey-Khatanga Basin location map
Statistics - Lithospheric temperature gradient
Median 6.907
Mean 7.012
Scale 0.576
stdev 0.659
Z_min/Location 5.539/69.3333°Lat 86.2333°Lon
Z_max/Location 8.841/ 69.7333°Lat 79.6333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

Computations

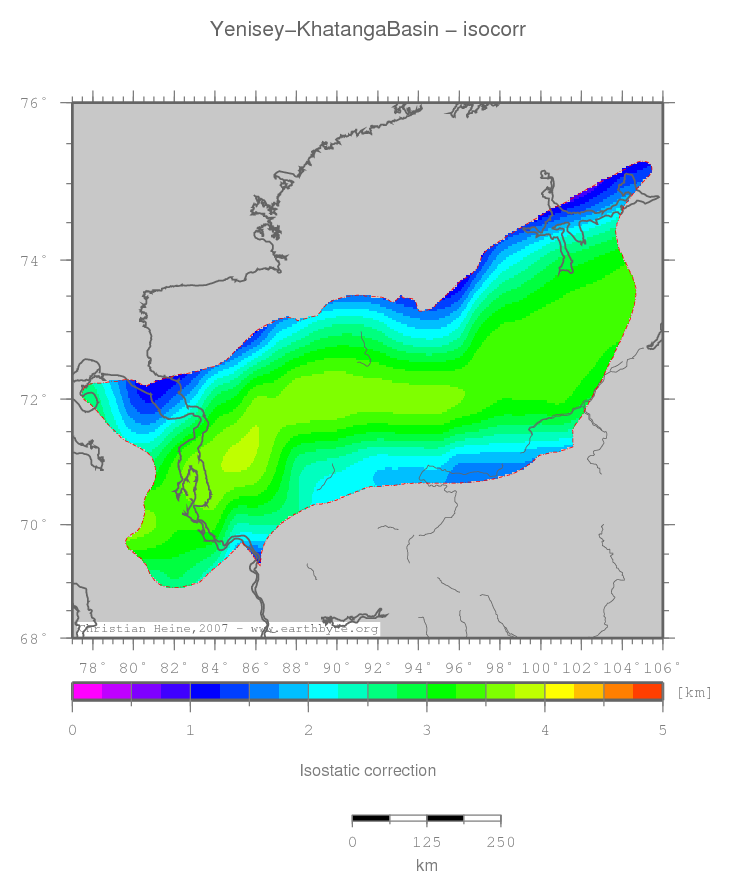

Isostatic correction
Yenisey-Khatanga Basin location map
Statistics - Isostatic correction
Median 2.985
Mean 2.809
Scale 0.682
stdev 0.679
Z_min/Location 0.850/74.9°Lat 102.067°Lon
Z_max/Location 3.812/71.1°Lat 85.2333°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

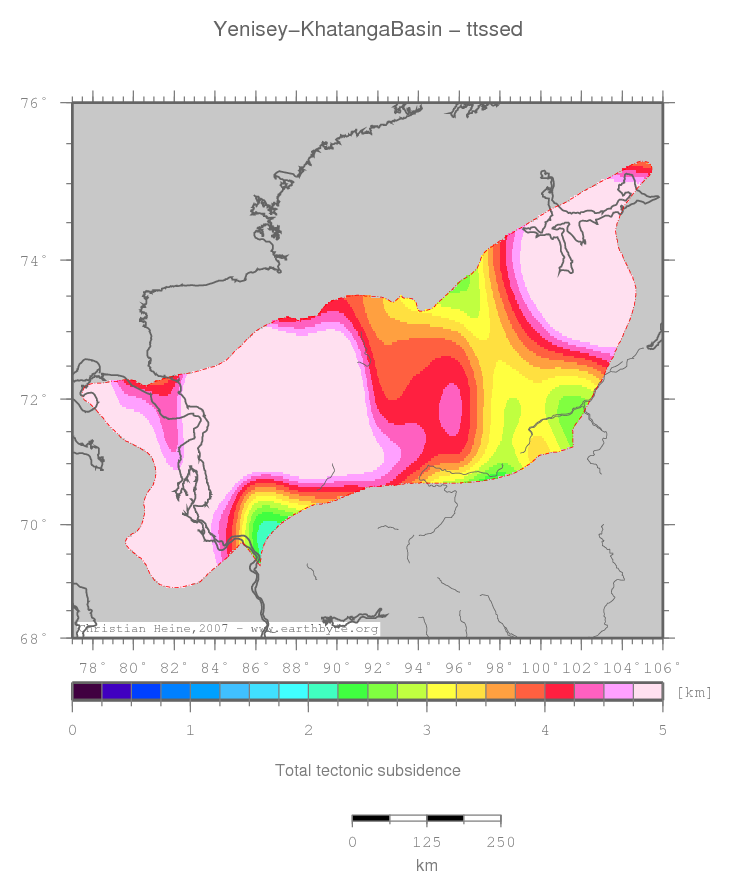

TTS (sediment)
Yenisey-Khatanga Basin location map
Statistics - TTS (sediment)
Median 4.652
Mean 4.769
Scale 1.373
stdev 1.265
Z_min/Location 1.977/69.8°Lat 86.6333°Lon
Z_max/Location 8.039/72.0°Lat 85.3°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

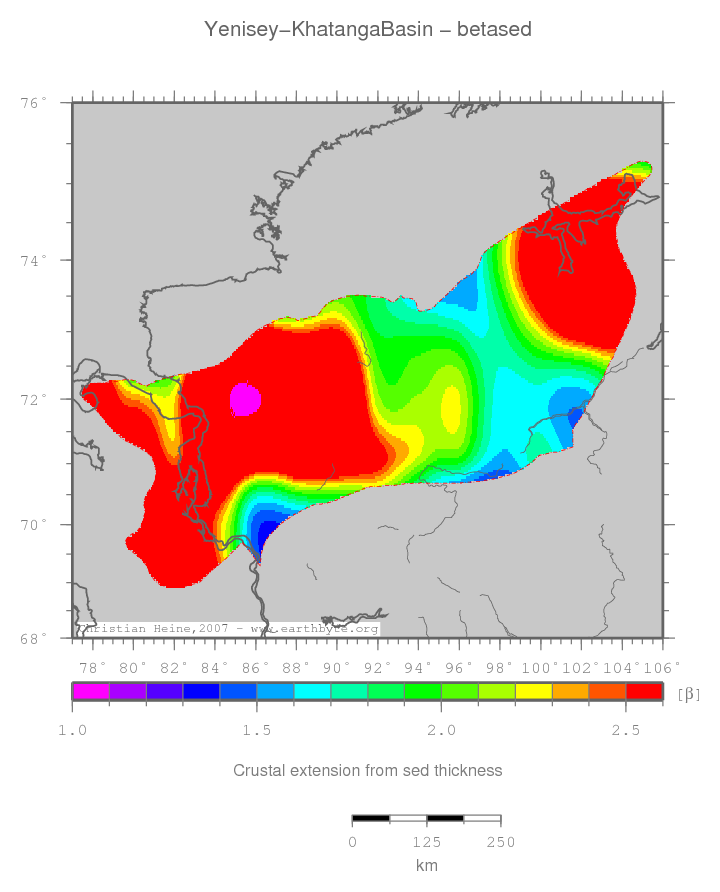

Beta (Sediment)
Yenisey-Khatanga Basin location map
Statistics - Beta (Sediment)
Median 2.442
Mean 4.405
Scale 0.980
stdev 200.500
Z_min/Location -11848.300/72.1333°Lat 84.8333°Lon
Z_max/Location 31895.800/72.2333°Lat 85.6°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

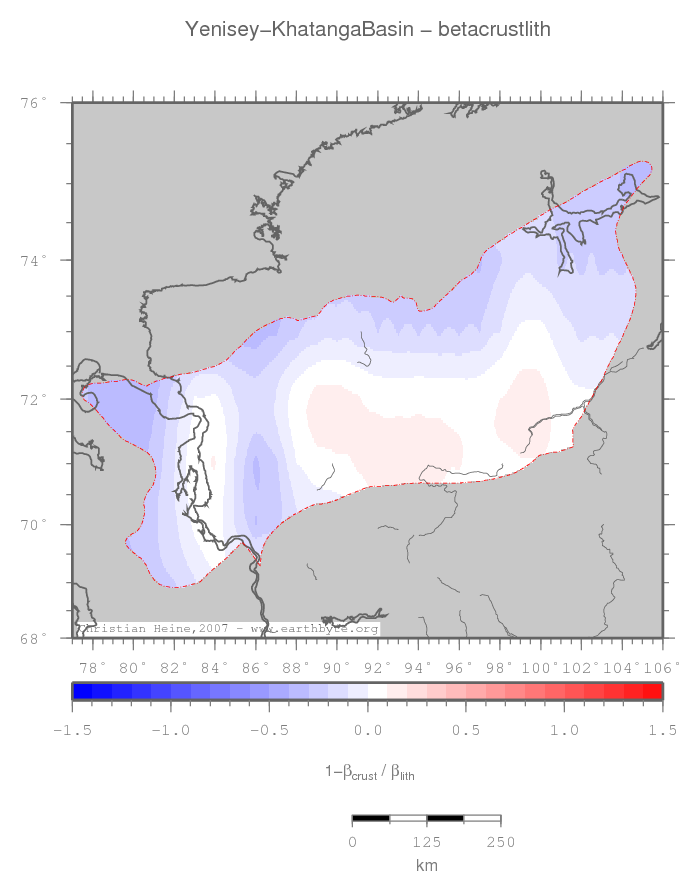

Crustal vs lithosph. extn.
Yenisey-Khatanga Basin location map
Statistics - Crustal vs lithosph. extn.
Median -0.068
Mean -0.069
Scale 0.186
stdev 0.140
Z_min/Location -0.397/72.0°Lat 80.0°Lon
Z_max/Location 0.151/72.0°Lat 99.0°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

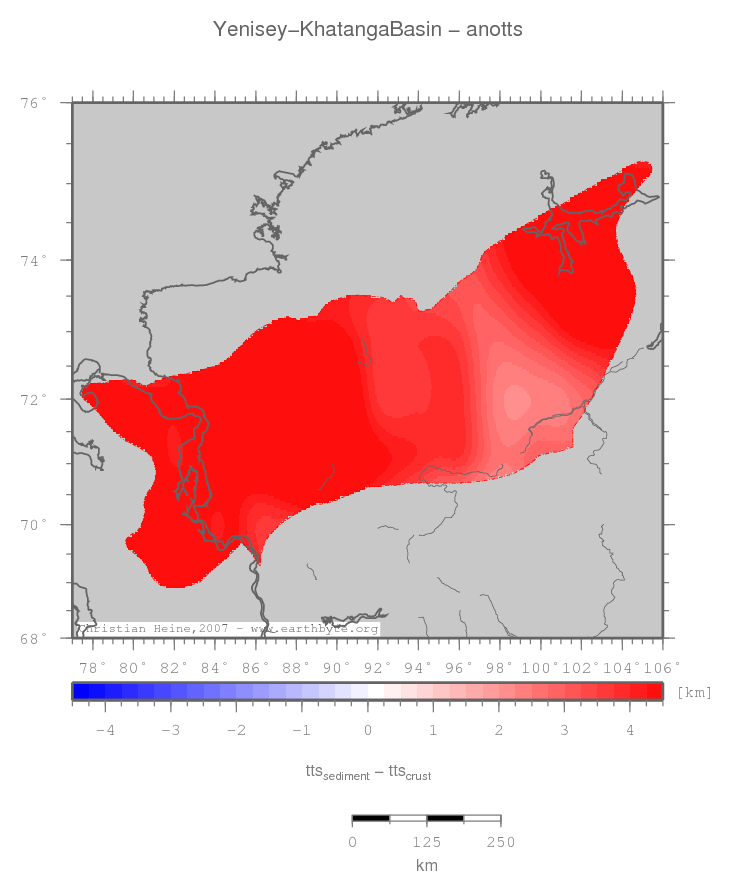

Anomalous TTS
Yenisey-Khatanga Basin location map
Statistics - Anomalous TTS
Median 4.444
Mean 4.416
Scale 1.124
stdev 1.068
Z_min/Location 2.169/71.9667°Lat 98.8°Lon
Z_max/Location 6.881/72.0°Lat 85.1667°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

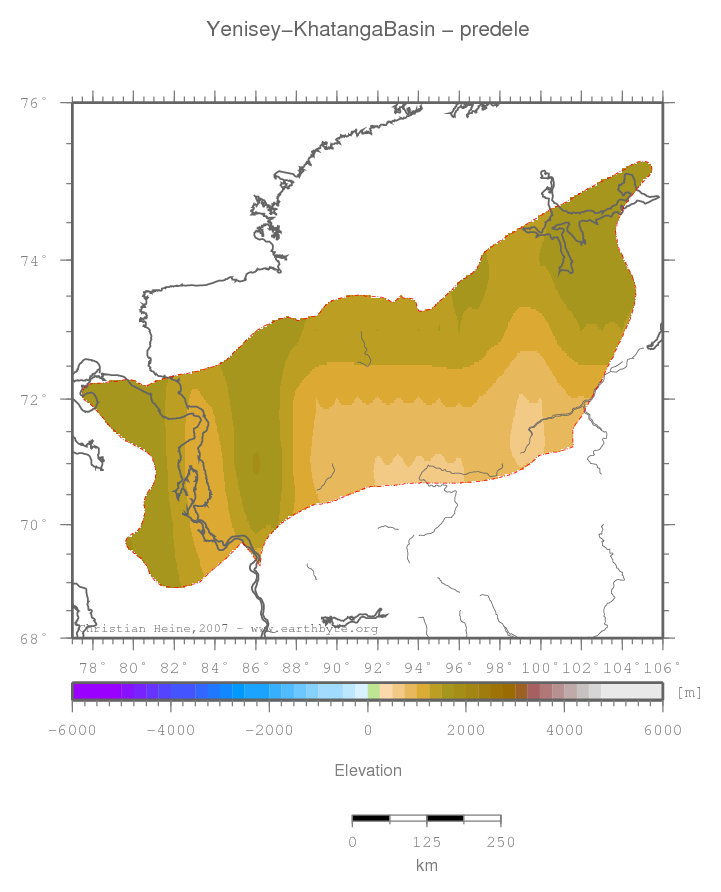

Predicted elevation
Yenisey-Khatanga Basin location map
Statistics - Predicted elevation
Median 1332.400
Mean 1277.570
Scale 355.611
stdev 299.387
Z_min/Location 684.074/71.0°Lat 95.0°Lon
Z_max/Location 1808.750/71.0°Lat 86.0°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

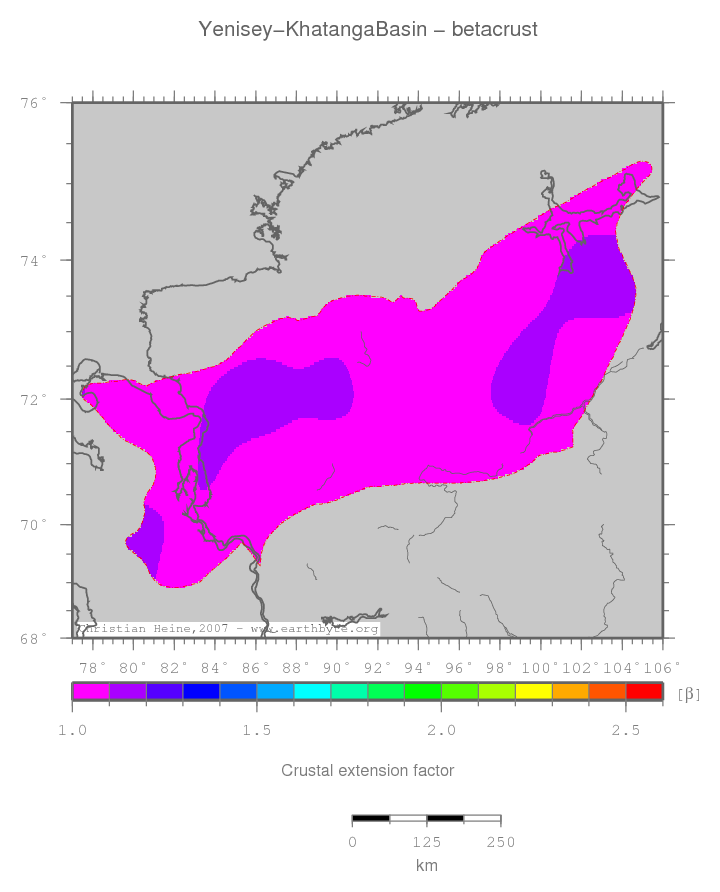

Beta (Crust)
Yenisey-Khatanga Basin location map
Statistics - Beta (Crust)
Median 1.056
Mean 1.051
Scale 0.058
stdev 0.060
Z_min/Location 0.832/69.7333°Lat 86.5°Lon
Z_max/Location 1.184/72.0°Lat 86.0°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

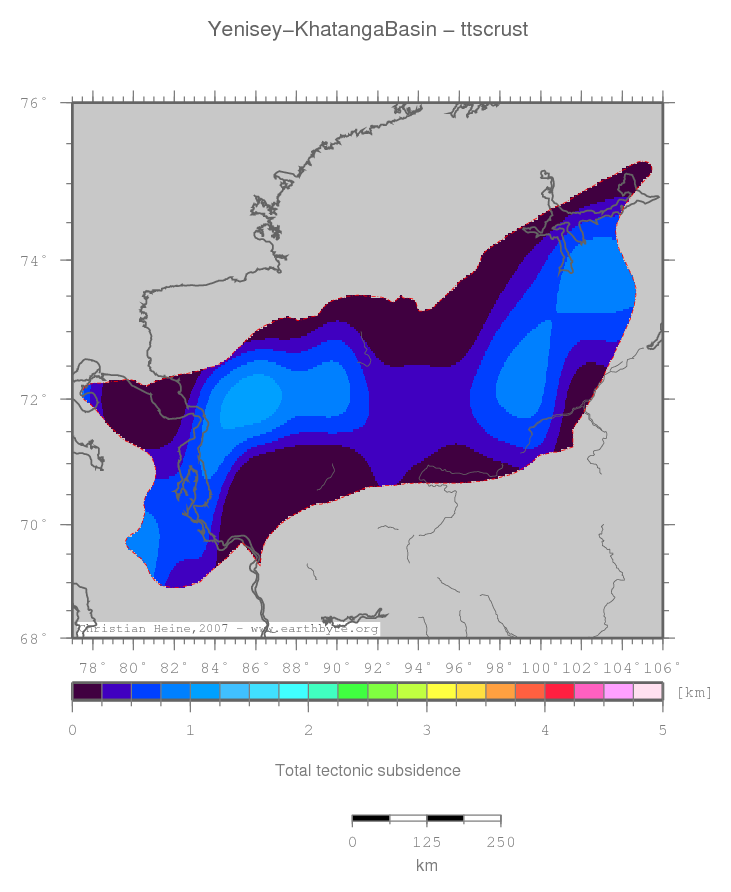

TTS (crust)
Yenisey-Khatanga Basin location map
Statistics - TTS (crust)
Median 0.412
Mean 0.352
Scale 0.404
stdev 0.456
Z_min/Location -1.579/69.7333°Lat 86.5°Lon
Z_max/Location 1.213/72.0°Lat 86.0°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

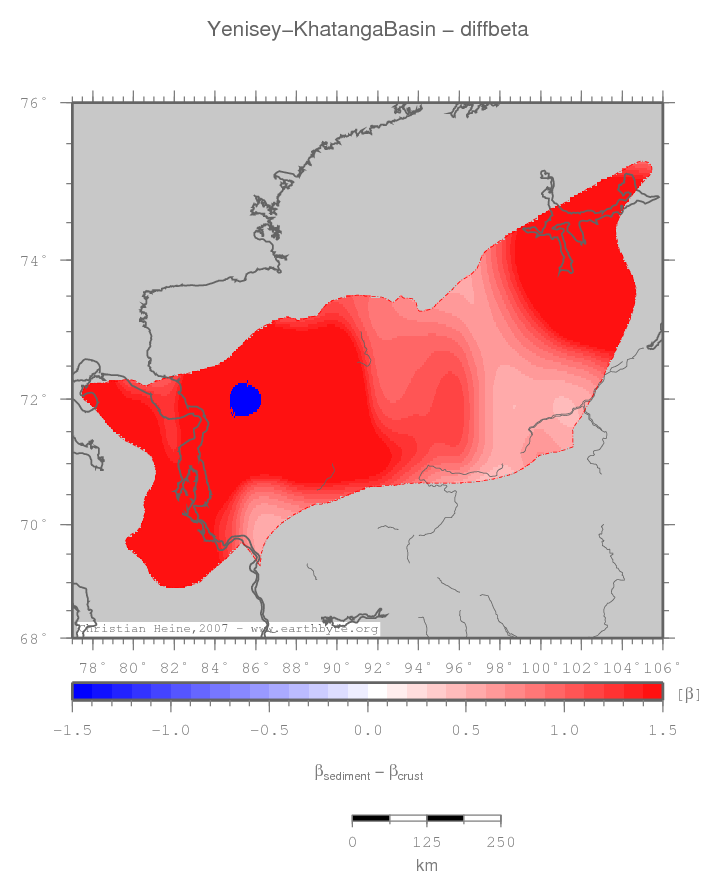

Differential Beta
Yenisey-Khatanga Basin location map
Statistics - Differential Beta
Median 1.414
Mean 3.354
Scale 0.952
stdev 200.499
Z_min/Location -11849.500/72.1333°Lat 84.8333°Lon
Z_max/Location 31894.700/72.2333°Lat 85.6°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

This basin data is based on interpolated global grids and might contain gridding errors or wrongly interpolated data values.


Page generated 2008-08-03 02:36:55 CEST | © Christian Heine, School of Geosciences, Sydney University, Australia
