Overview

This page bundles the available data for the Reggane Basin in the Africa. The images are hyperlinks and will open up a separate window with a high resolution PDF image of the map.
The basin data is derived from a lower resolution grid which has been upsampled using GMT. This could have introduced an accuracy which is beyond the original data resolution.

Select data to display:

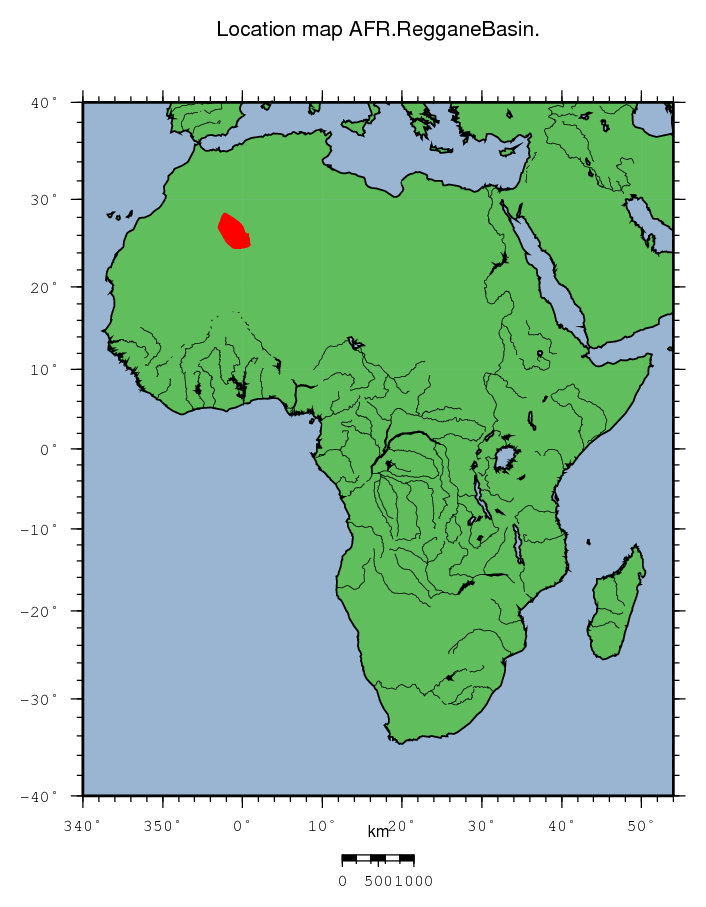

Reggane Basin location map
Basin name Reggane Basin
Region code AFR
Basin ID 7690
Plate location/code compress foreland/CMF
Basin cross section

The basin cross section is automatically generated using the available crustal structure data sets. Sometimes the data labels are not plotted correctly, depending on the length of the section.

The location of the profile is indicated in all maps as dashed-dotted thin black line. For the endpoints of the profile, the two points of a given polygon located farthest away from each other were computed.

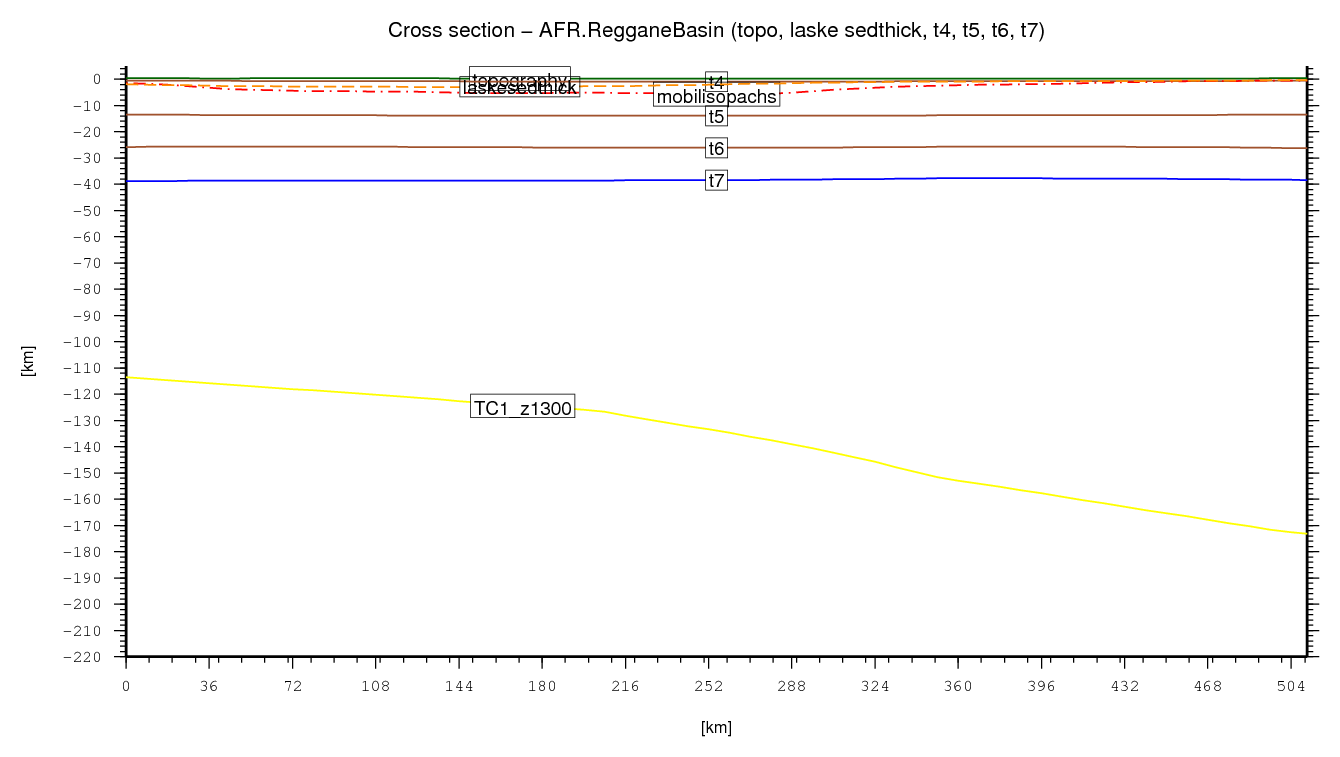

Reggane Basin cross section
↑ back to the top

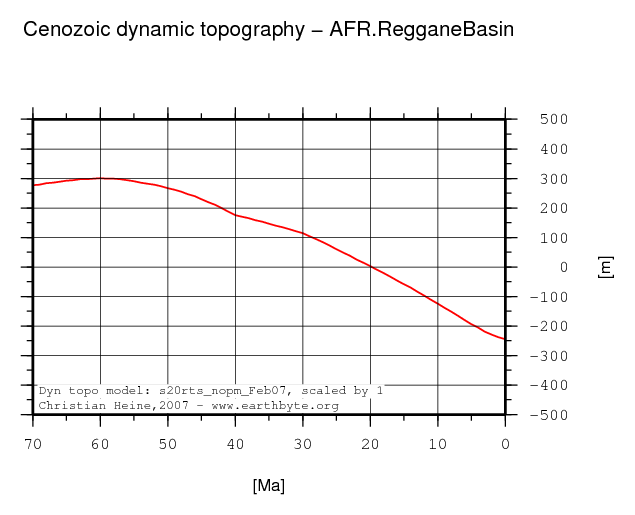

Dynamic topography evolution for basin centroid
Reggane Basin dynamic topography through time

The dynamic topography history for the basin is derived by tracking the basin centroid. The paleo-location for this point is computed using the EarthByte plate kinematic framework rotating the position back in time.

The dynamic topography model is derived from the S20RTS seismic tomography model (Ritsema et al., 99) by converting seismic velocites to density anomalies using an empirical scaling factor of 0.25. The density anomalies are then advected back in time to compute mantle flow with plate motions superimposed (using the EarthByte plate rotation framework) as surface boundary conditions. The dynamic topography is then derived from the computed density distribution using a free upper boundary. For details regarding the methodology see the following papers:

  • B. Steinberger, H. Schmeling, and G. Marquart. Large-scale lithospheric stress field and topography induced by global mantle circulation. Earth Planet. Sci. Lett., 186:75-91, 2001.
    doi: 10.1016/S0012-821X(01)00229-1.
  • B. Steinberger. Effects of latent heat release at phase boundaries on flow in the Earth's mantle, phase boundary topography and dynamic topography at the Earth's surface. Phys. Earth Planet. Int., 164:2-20, 2007.
    doi: 10.1016/j.pepi.2007.04.021.

↑ back to the top

Observations

Mantle Lid thickness

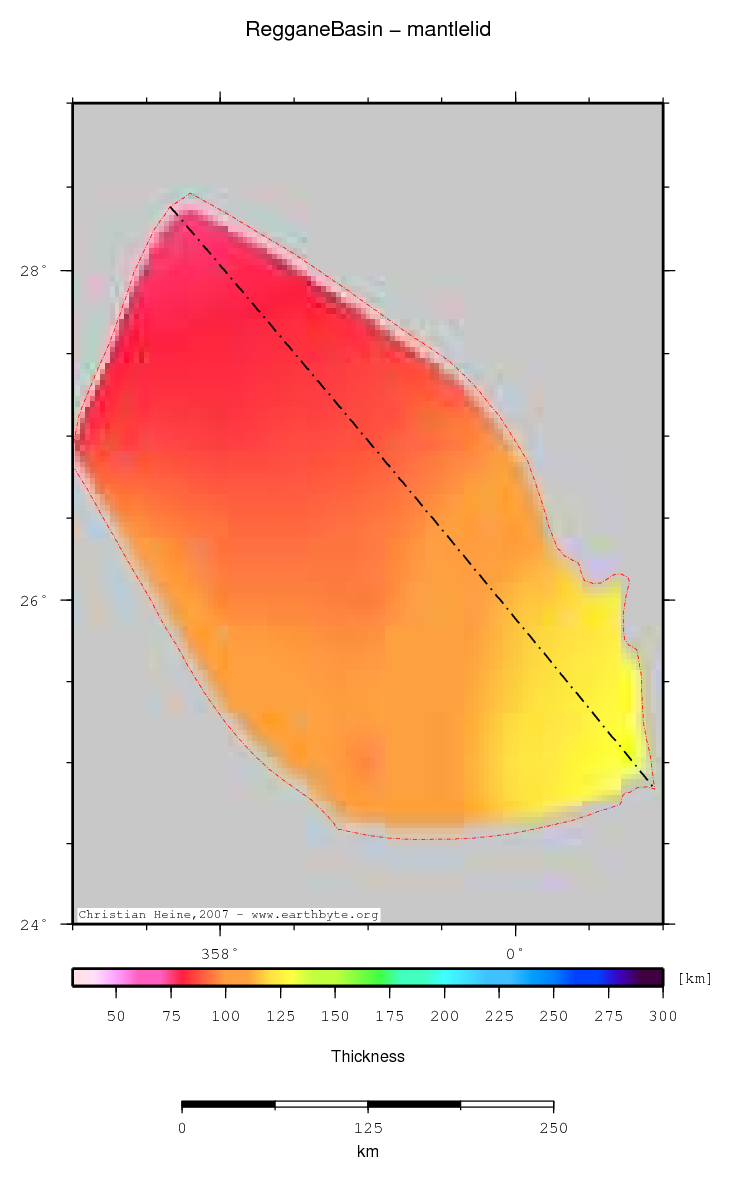

Reggane Basin location map
Statistics - Mantle Lid thickness
Median 97.131
Mean 98.274
Scale 14.637
stdev 13.933
Z_min/Location 74.053/28.4333°Lat -2.23333°Lon
Z_max/Location 134.497/ 24.8667°Lat 0.933333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

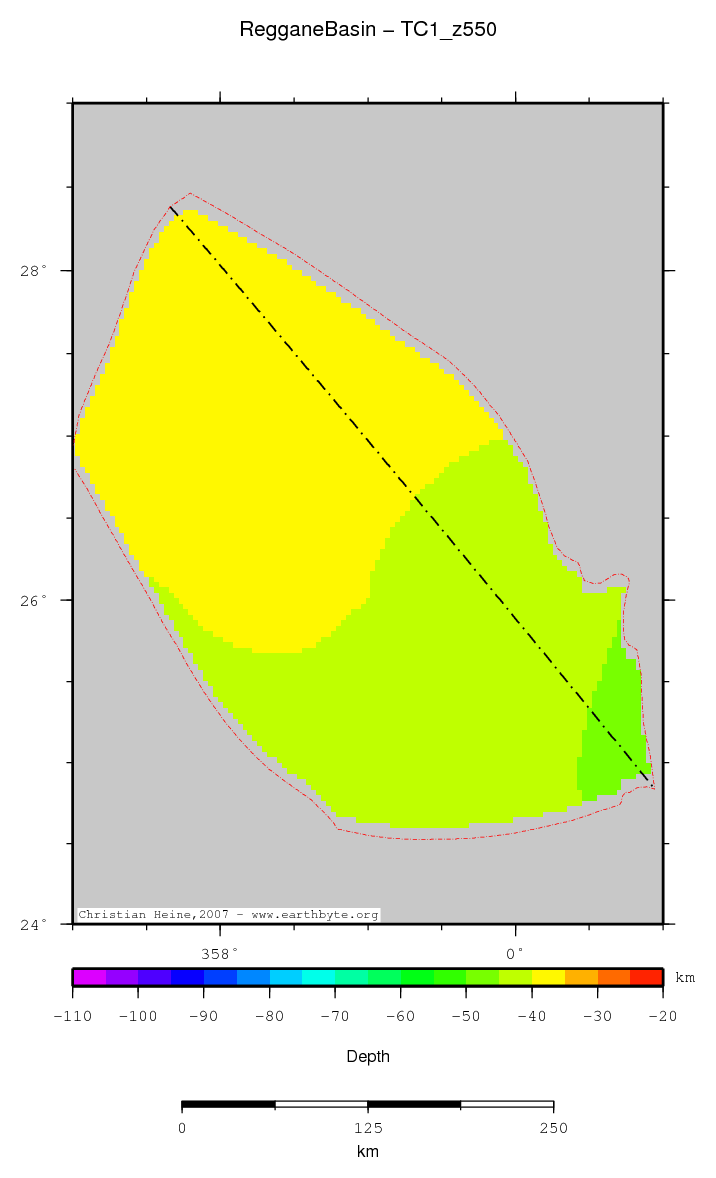

Depth of 550 deg isotherm
Reggane Basin location map
Statistics - Depth of 550 deg isotherm
Median -39.933
Mean -40.229
Scale 2.100
stdev 2.289
Z_min/Location -46.644/24.8667°Lat 0.933333°Lon
Z_max/Location -36.046/ 28.4333°Lat -2.23333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top
Mobil isopachs

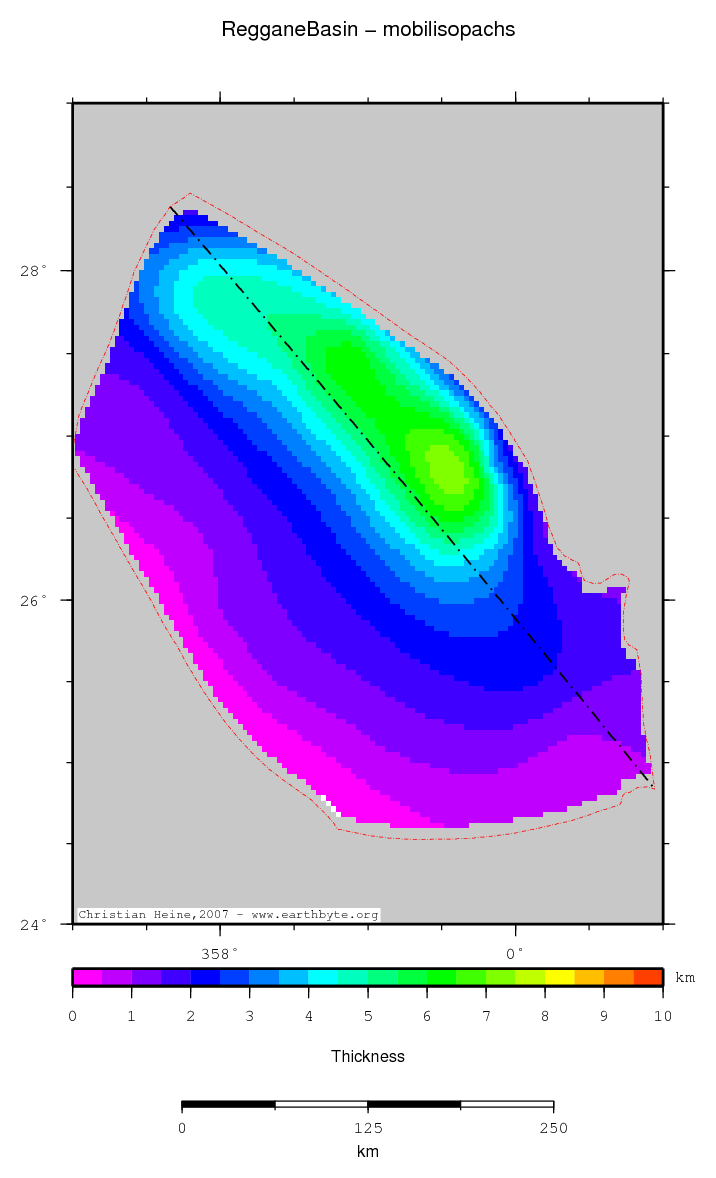

Reggane Basin location map
Statistics - Mobil isopachs
Median 1.862
Mean 2.382
Scale 1.456
stdev 1.699
Z_min/Location -0.093/24.6333°Lat -1.23333°Lon
Z_max/Location 7.295/ 26.8°Lat -0.466667°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

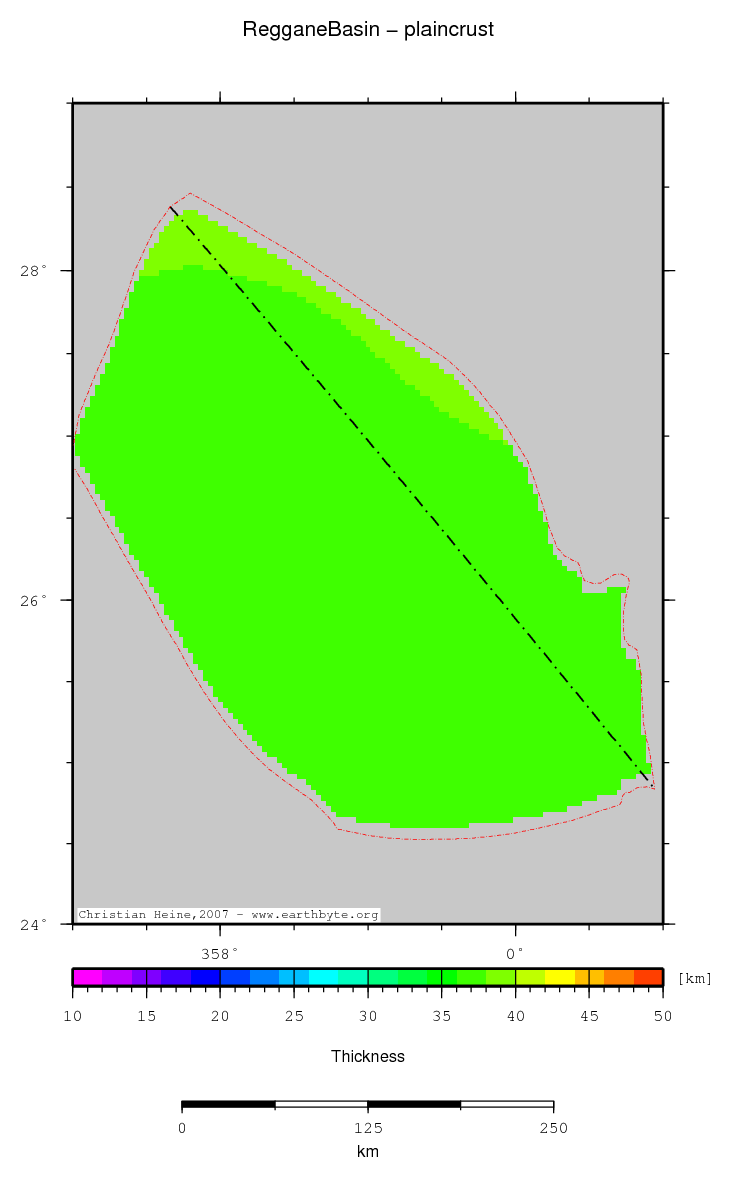

Plain crustal thickness
Reggane Basin location map
Statistics - Plain crustal thickness
Median 37.214
Mean 37.336
Scale 0.362
stdev 0.381
Z_min/Location 36.715/26.1°Lat 0.766667°Lon
Z_max/Location 38.382/ 28.4333°Lat -2.23333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

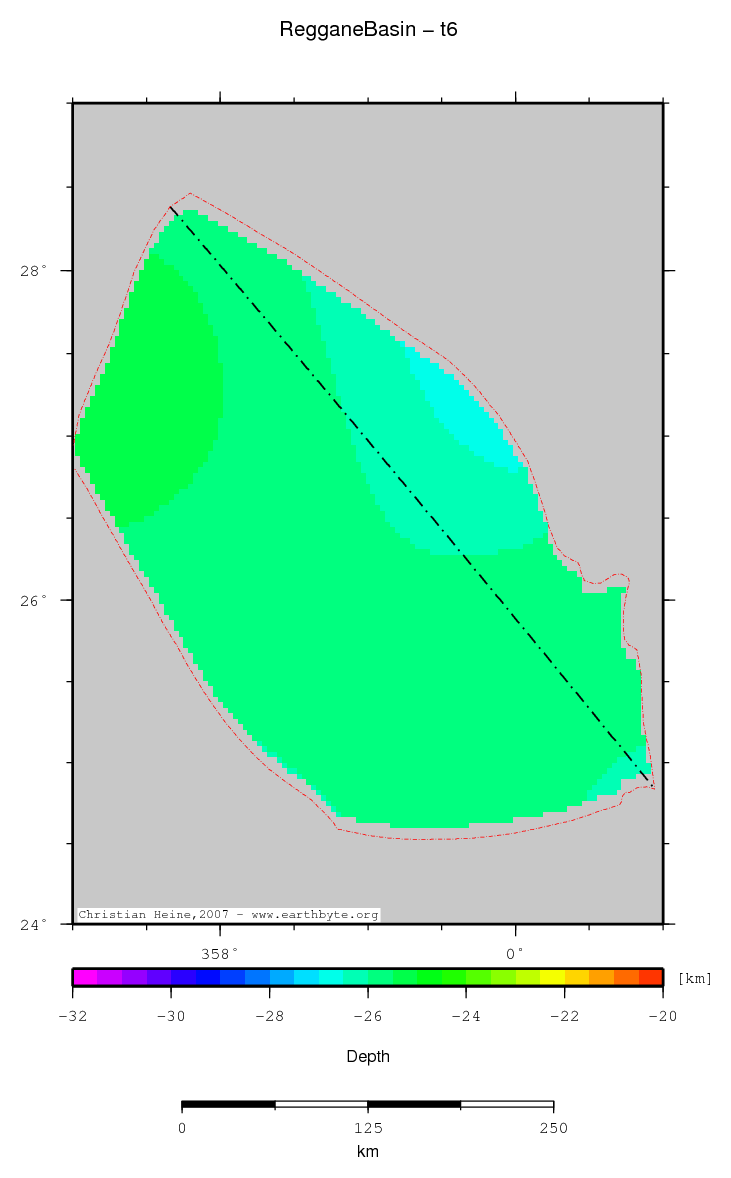

Base middle crust
Reggane Basin location map
Statistics - Base middle crust
Median -25.826
Mean -25.823
Scale 0.189
stdev 0.274
Z_min/Location -26.846/27.2333°Lat -0.233333°Lon
Z_max/Location -25.229/ 27.2333°Lat -2.9°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

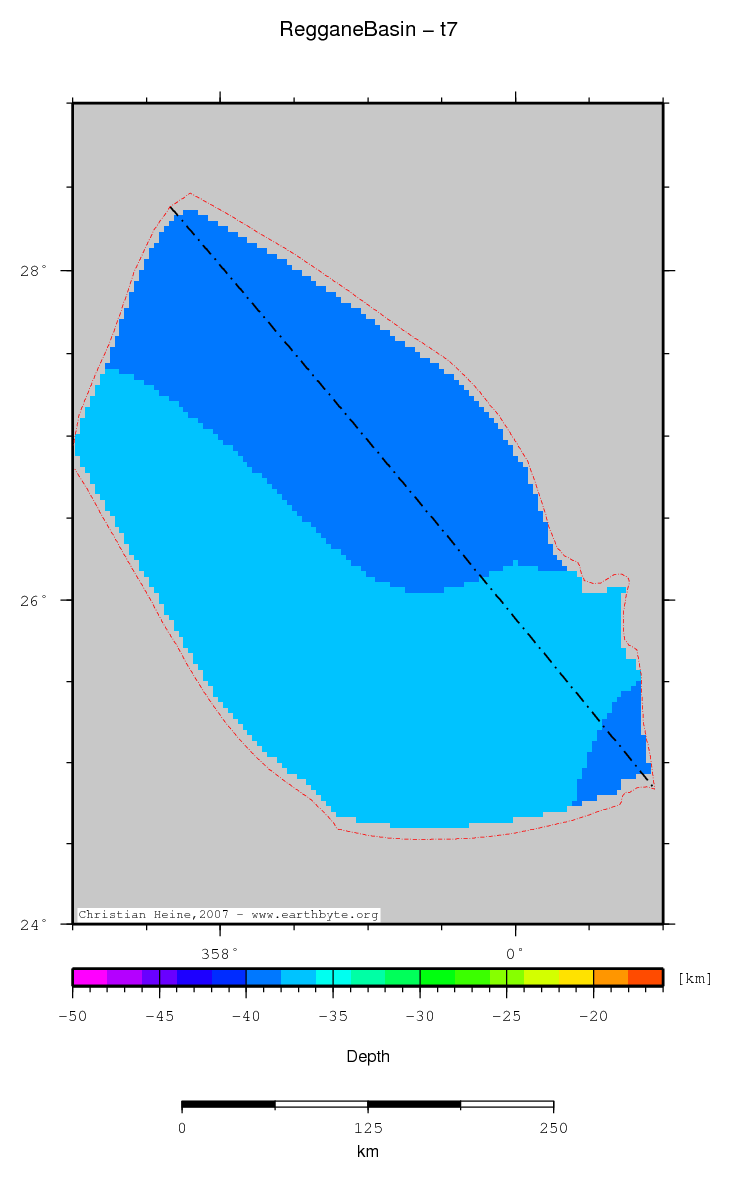

Base lower crust
Reggane Basin location map
Statistics - Base lower crust
Median -37.928
Mean -38.109
Scale 0.248
stdev 0.416
Z_min/Location -39.535/27.4333°Lat -0.433333°Lon
Z_max/Location -37.541/ 25.3°Lat 0.0°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

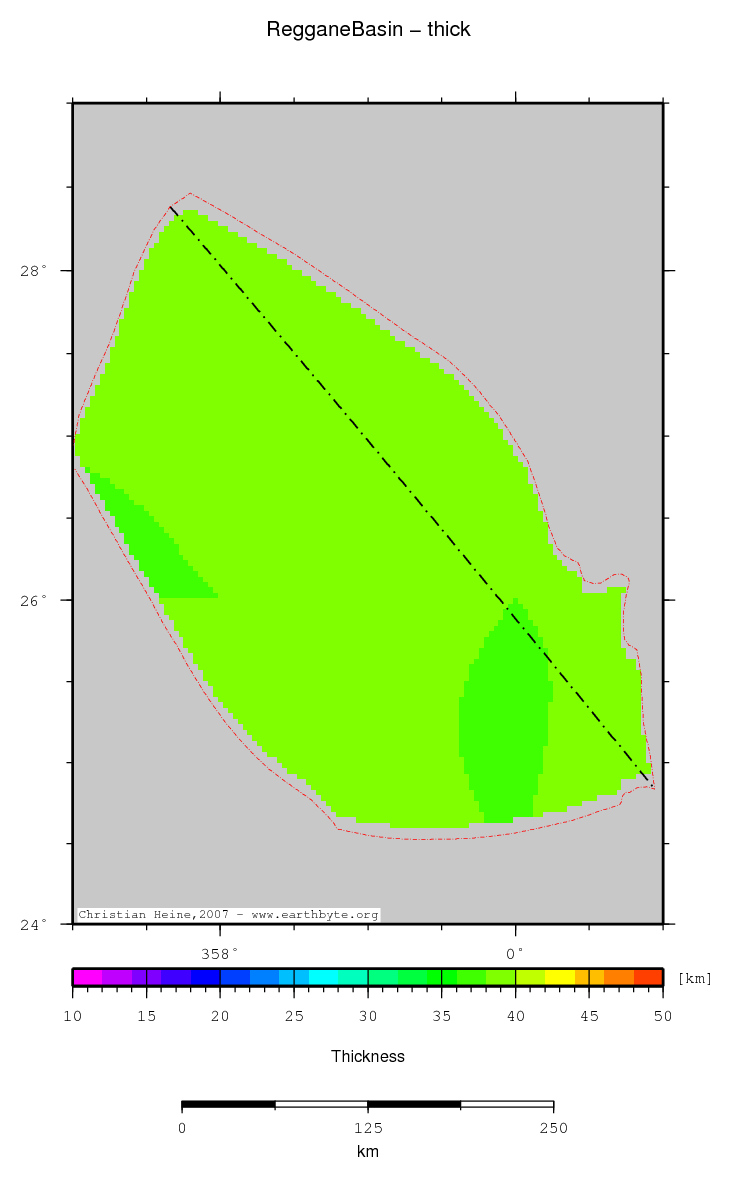

Total crustal thickness
Reggane Basin location map
Statistics - Total crustal thickness
Median 38.188
Mean 38.382
Scale 0.254
stdev 0.433
Z_min/Location 37.778/25.3333°Lat 0.0°Lon
Z_max/Location 39.797/ 27.4333°Lat -0.433333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top
Base upper crust

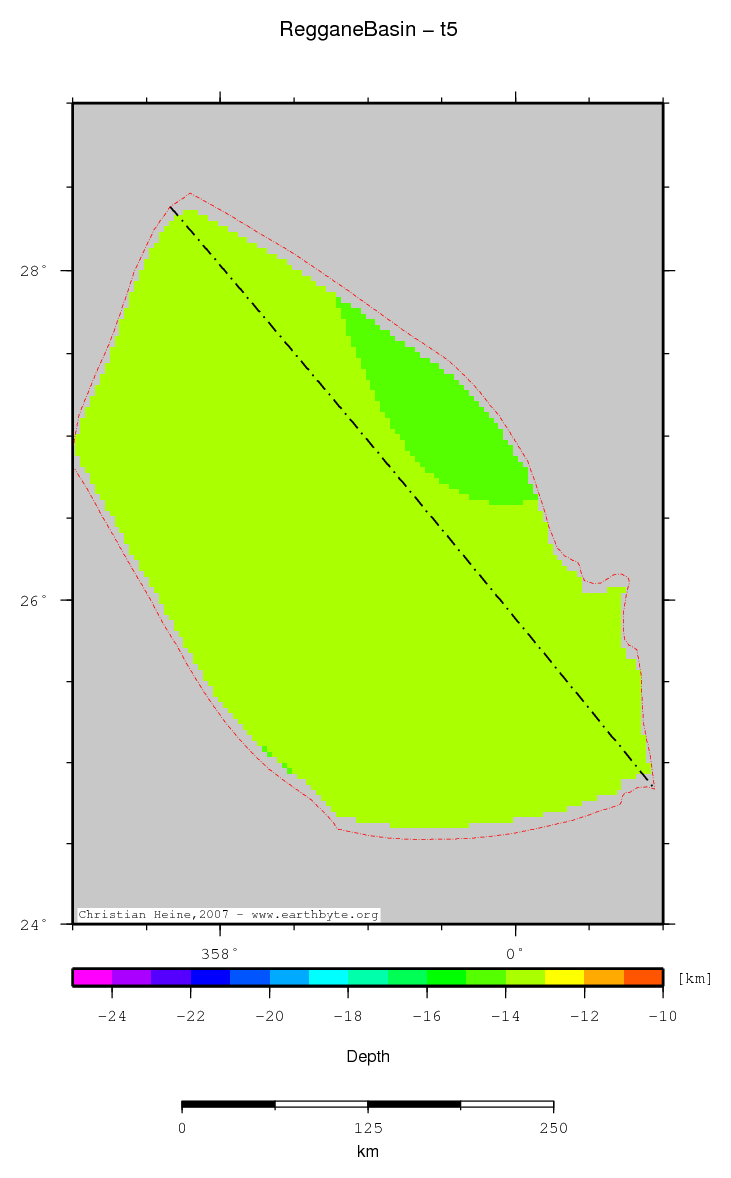

Reggane Basin location map
Statistics - Base upper crust
Median -13.785
Mean -13.752
Scale 0.161
stdev 0.209
Z_min/Location -14.289/27.3°Lat -0.3°Lon
Z_max/Location -13.041/ 27.1667°Lat -2.93333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

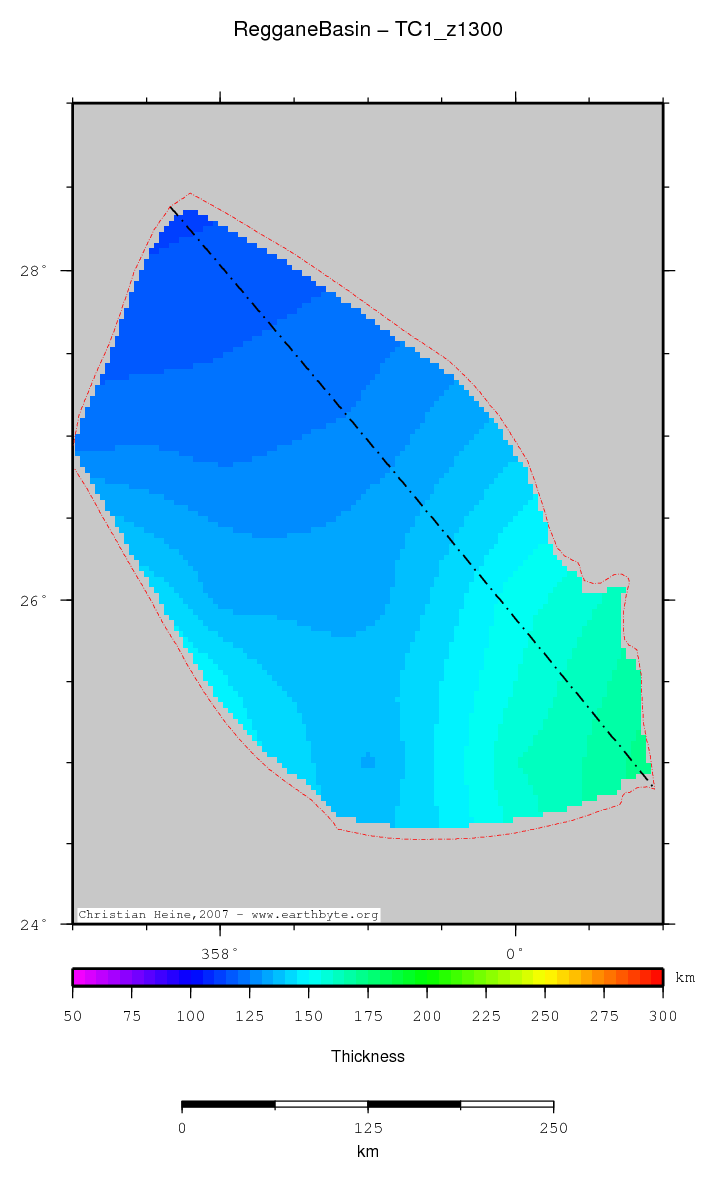

Thermal lithospheric thickness
Reggane Basin location map
Statistics - Thermal lithospheric thickness
Median 135.441
Mean 136.656
Scale 14.255
stdev 13.700
Z_min/Location 113.456/28.4333°Lat -2.23333°Lon
Z_max/Location 173.136/ 24.8667°Lat 0.933333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

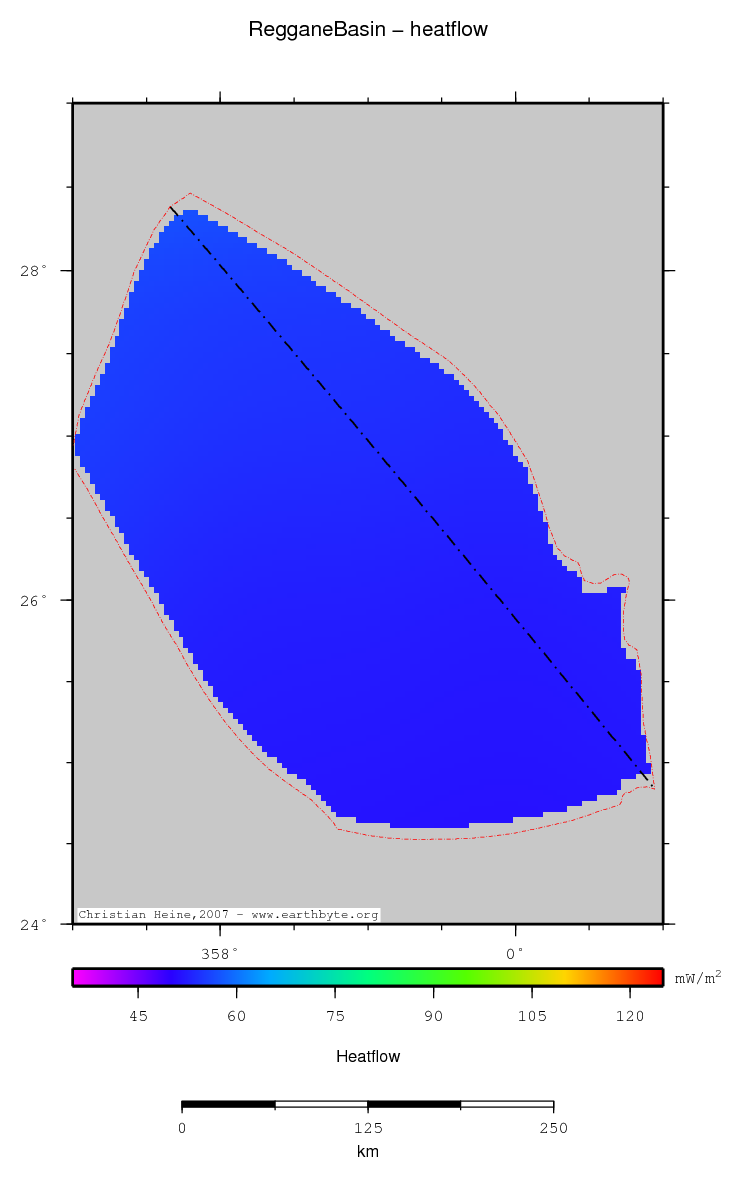

Heatflow
Reggane Basin location map
Statistics - Heatflow
Median 52.928
Mean 53.242
Scale 1.380
stdev 1.278
Z_min/Location 51.440/24.5667°Lat -0.0333333°Lon
Z_max/Location 57.324/ 28.4333°Lat -2.23333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top
Topography (ETOPO2)

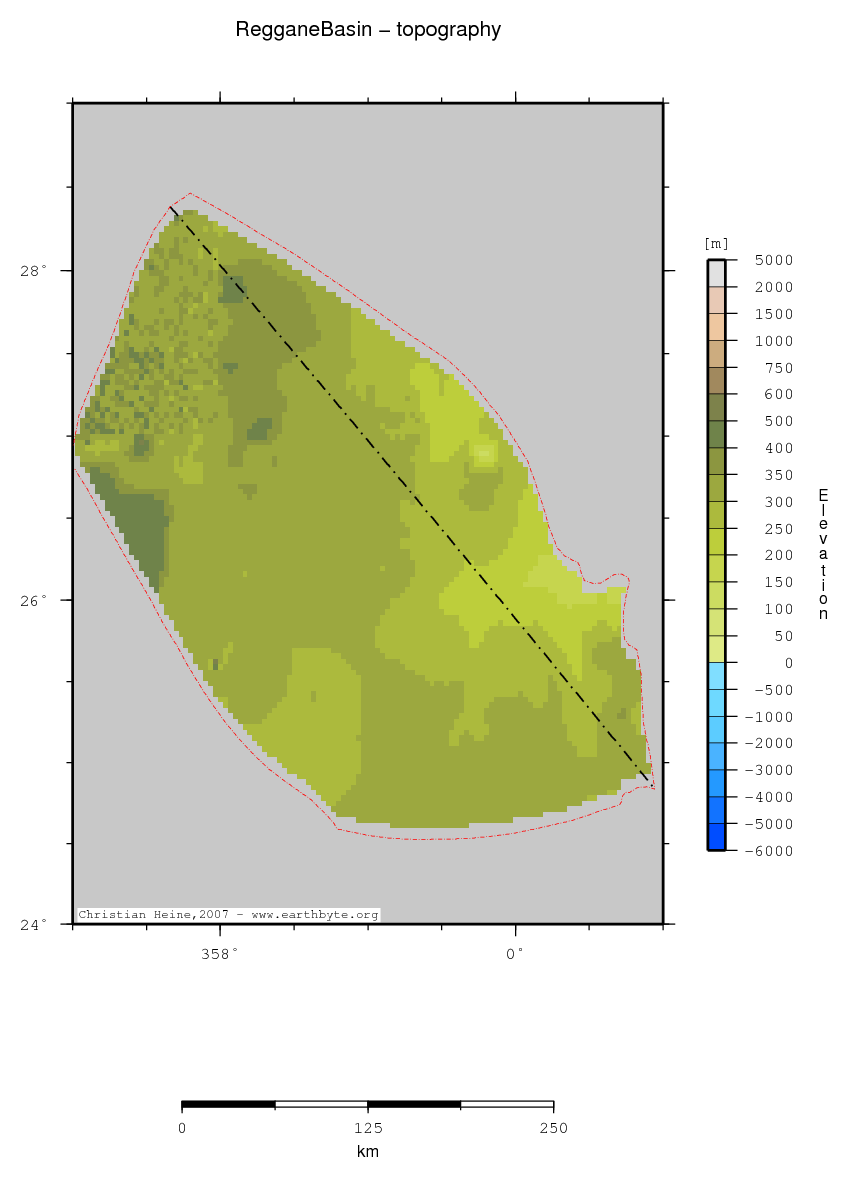

Reggane Basin location map
Statistics - Topography (ETOPO2)
Median 304.000
Mean 307.173
Scale 19.274
stdev 45.633
Z_min/Location 148.000/26.9°Lat -0.233333°Lon
Z_max/Location 542.000/ 25.6°Lat -2.03333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

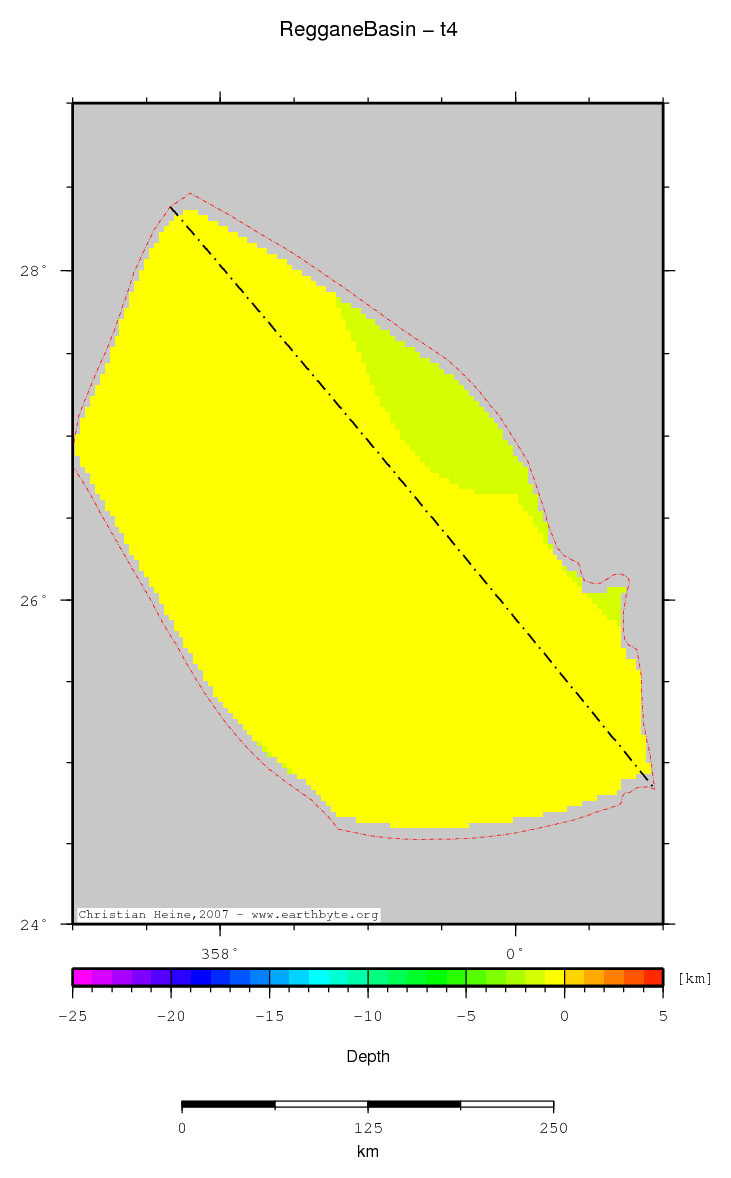

Base hard sediments
Reggane Basin location map
Statistics - Base hard sediments
Median -0.798
Mean -0.773
Scale 0.155
stdev 0.187
Z_min/Location -1.275/27.4333°Lat -0.433333°Lon
Z_max/Location -0.224/ 27.1667°Lat -2.93333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

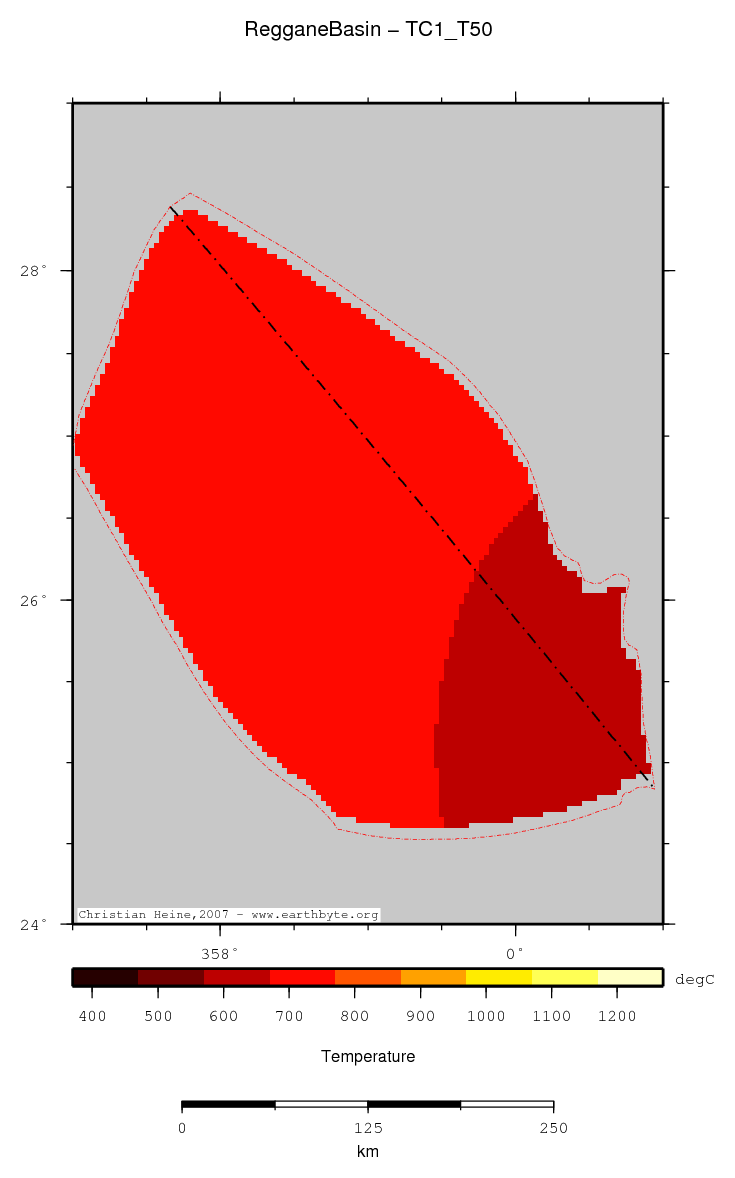

Temperature at 50km depth
Reggane Basin location map
Statistics - Temperature at 50km depth
Median 700.876
Mean 697.061
Scale 39.152
stdev 39.999
Z_min/Location 593.659/24.8667°Lat 0.933333°Lon
Z_max/Location 771.375/ 28.4333°Lat -2.23333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

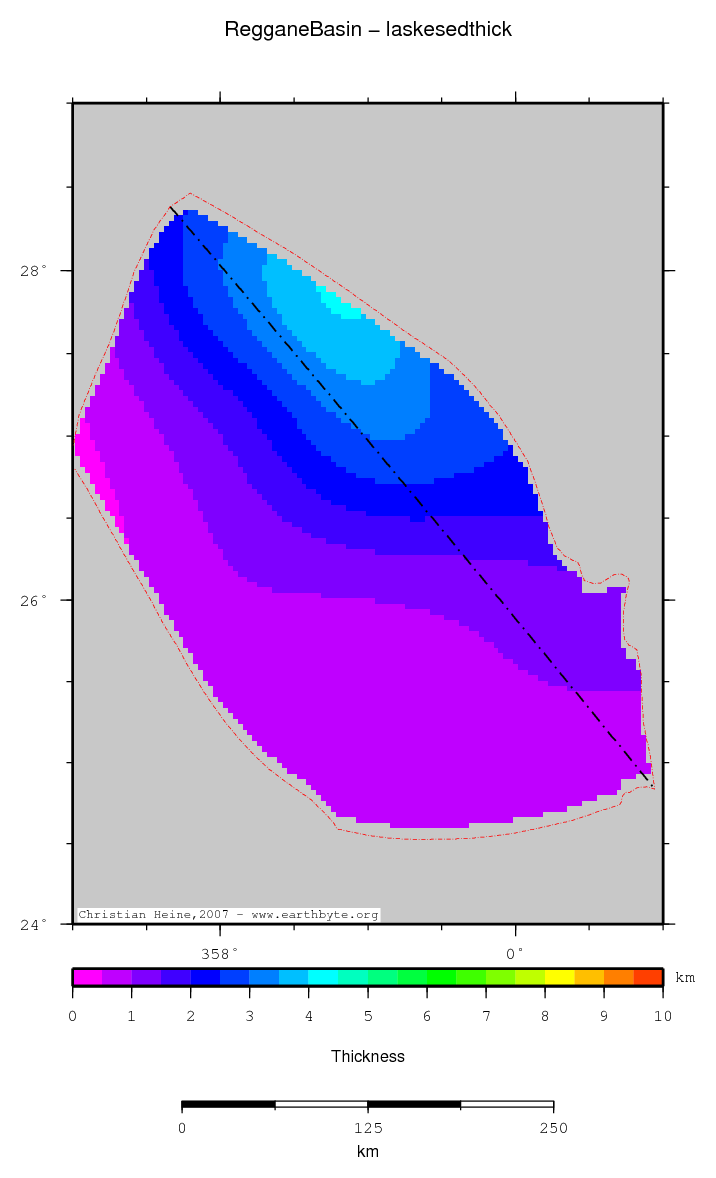

Laske sediment thickness
Reggane Basin location map
Statistics - Laske sediment thickness
Median 1.098
Mean 1.541
Scale 0.458
stdev 0.908
Z_min/Location 0.364/26.8°Lat -2.96667°Lon
Z_max/Location 4.091/ 27.8667°Lat -1.13333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top
Lithospheric temperature gradient

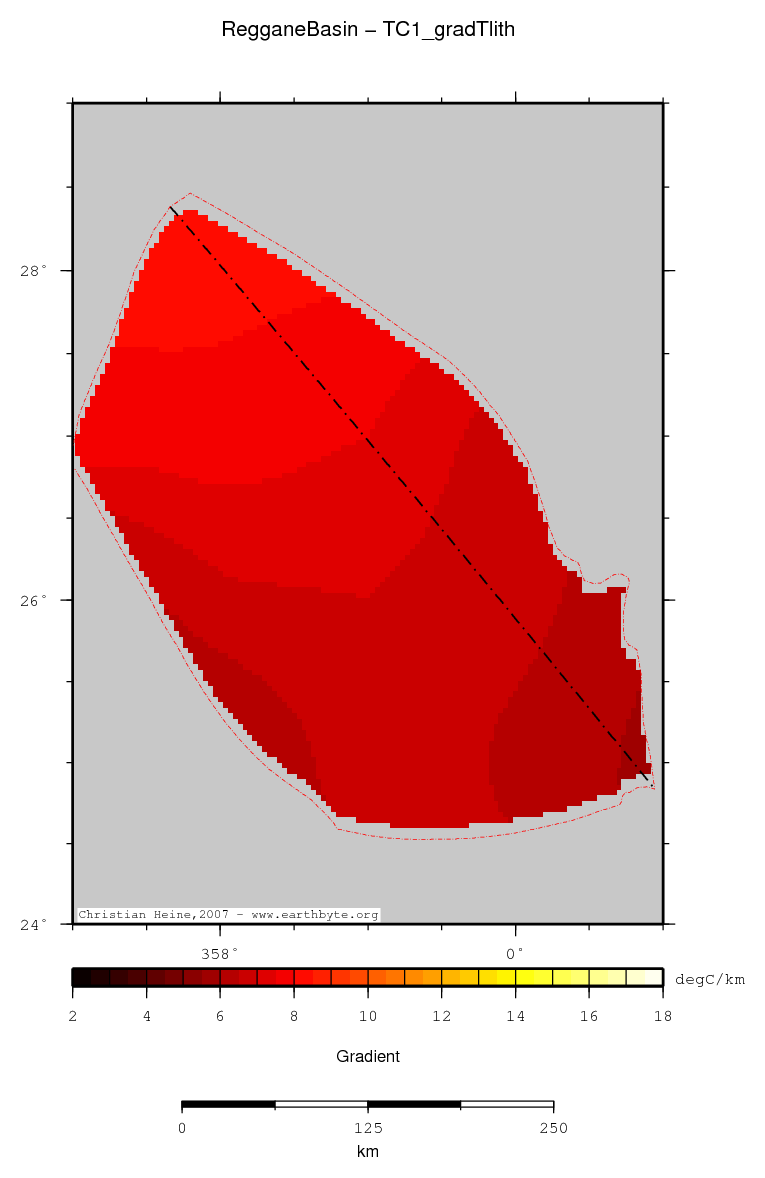

Reggane Basin location map
Statistics - Lithospheric temperature gradient
Median 6.917
Mean 7.069
Scale 0.613
stdev 0.602
Z_min/Location 5.831/24.8667°Lat 0.933333°Lon
Z_max/Location 8.348/ 28.4333°Lat -2.23333°Lon

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

Computations

Isostatic correction

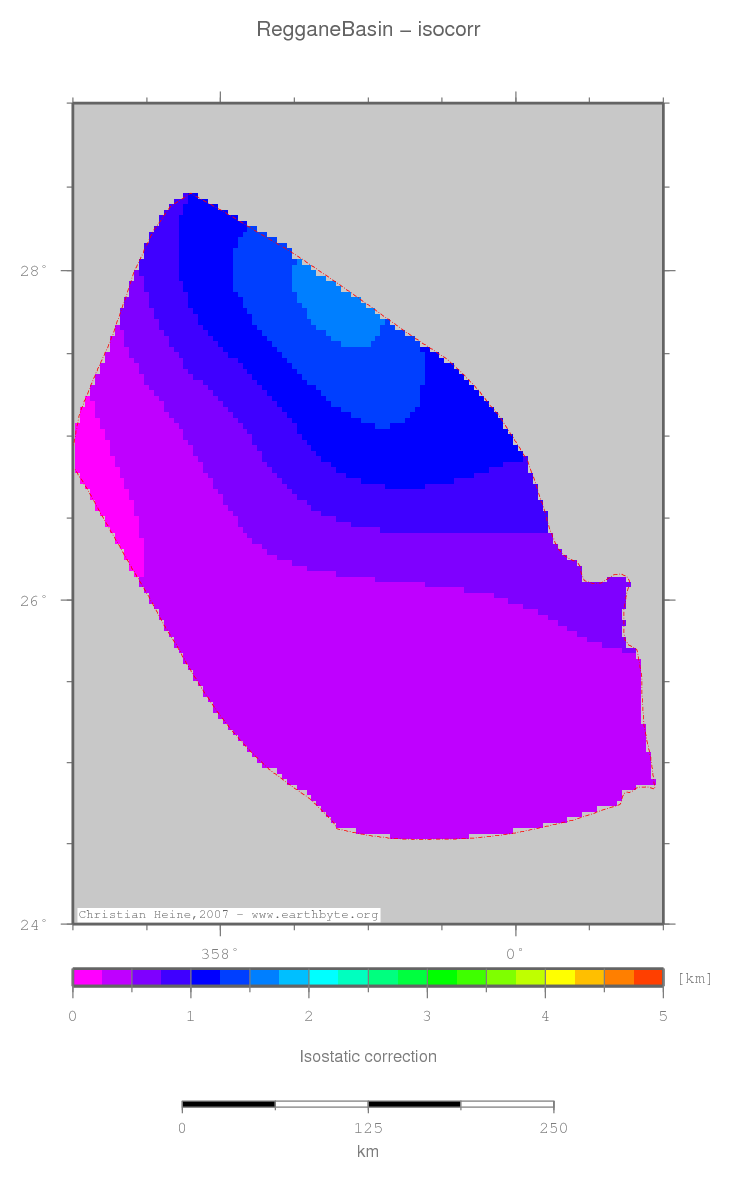

Reggane Basin location map
Statistics - Isostatic correction
Median 0.464
Mean 0.636
Scale 0.190
stdev 0.356
Z_min/Location 0.157/26.8°Lat -2.96667°Lon
Z_max/Location 1.603/27.8667°Lat -1.13333°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top
TTS (sediment)

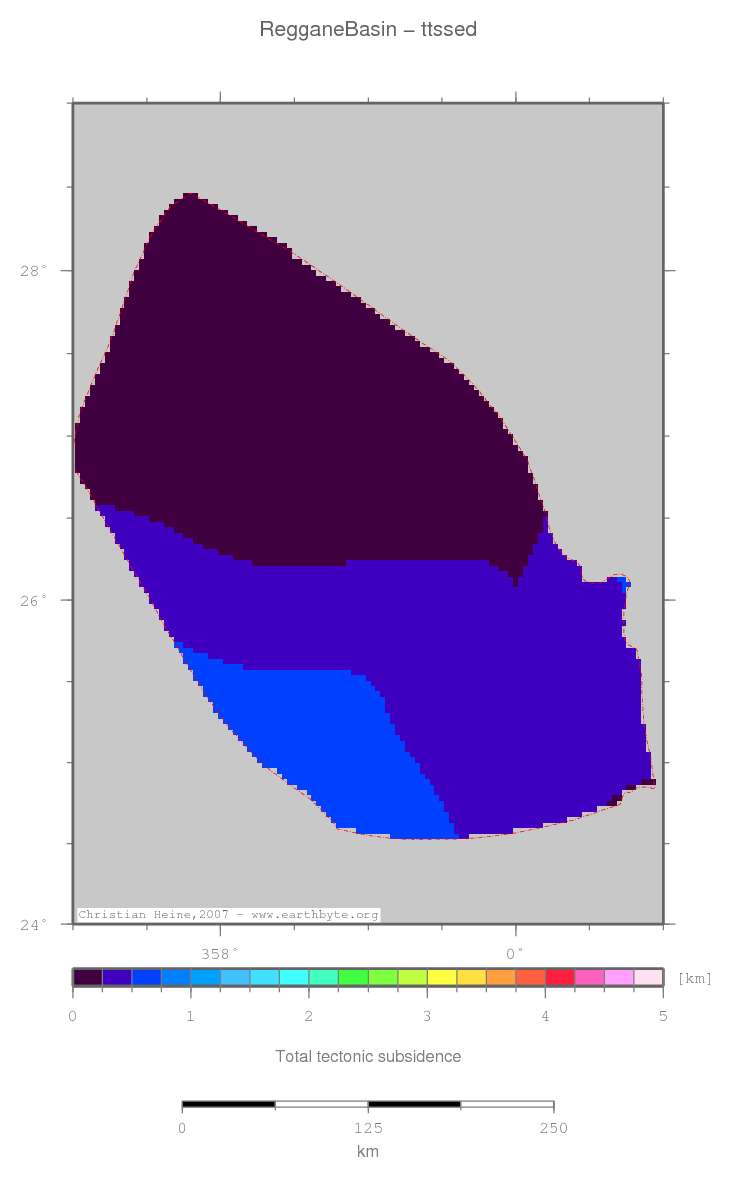

Reggane Basin location map
Statistics - TTS (sediment)
Median 0.258
Mean 0.137
Scale 0.309
stdev 0.345
Z_min/Location -0.646/27.8667°Lat -1.5°Lon
Z_max/Location 0.666/24.9667°Lat -1.66667°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top
Beta (Sediment)
Reggane Basin location map
Statistics - Beta (Sediment)
Median 1.034
Mean 1.020
Scale 0.043
stdev 0.045
Z_min/Location 0.924/27.8667°Lat -1.5°Lon
Z_max/Location 1.093/24.9667°Lat -1.66667°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top
Crustal vs lithosph. extn.

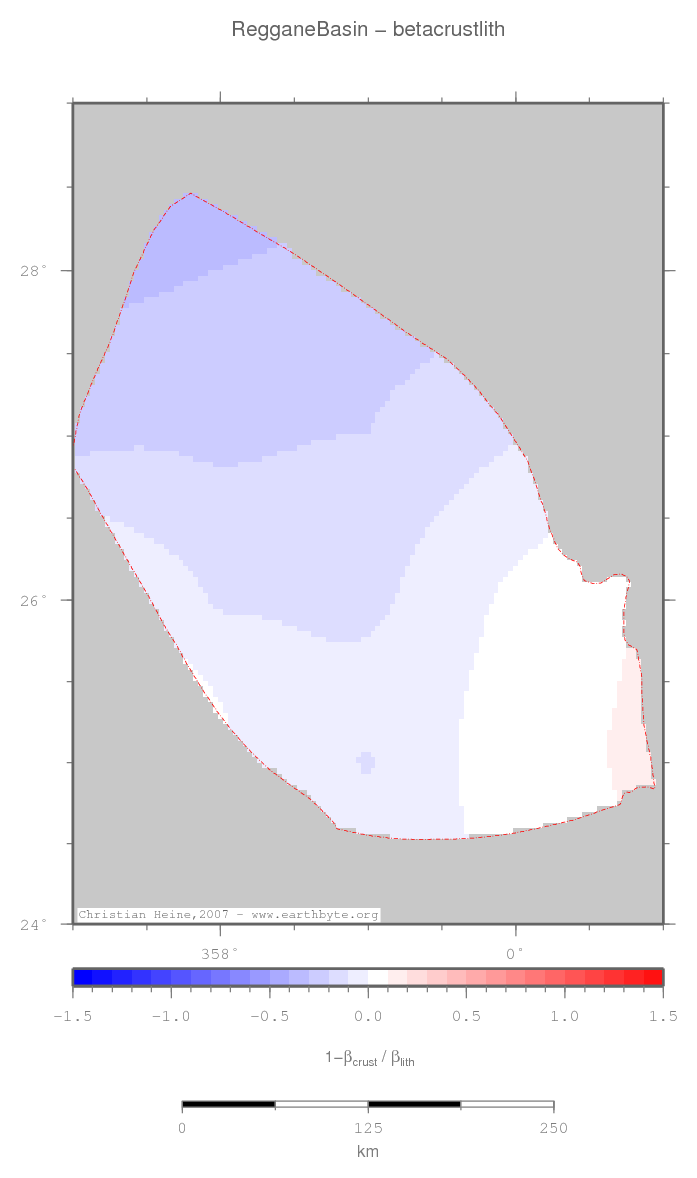

Reggane Basin location map
Statistics - Crustal vs lithosph. extn.
Median -0.105
Mean -0.109
Scale 0.127
stdev 0.114
Z_min/Location -0.349/28.4333°Lat -2.23333°Lon
Z_max/Location 0.121/25.0333°Lat 0.9°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top
Anomalous TTS

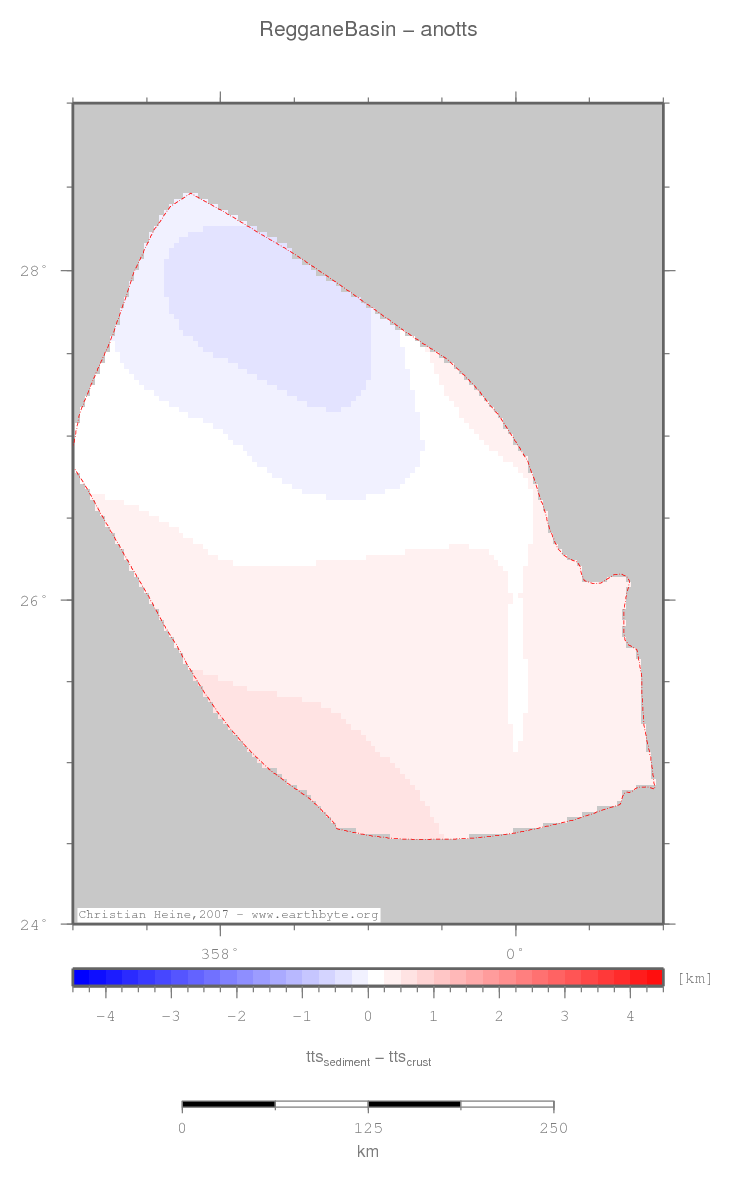

Reggane Basin location map
Statistics - Anomalous TTS
Median 0.263
Mean 0.181
Scale 0.241
stdev 0.276
Z_min/Location -0.464/27.8333°Lat -1.53333°Lon
Z_max/Location 0.623/24.6°Lat -1.2°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

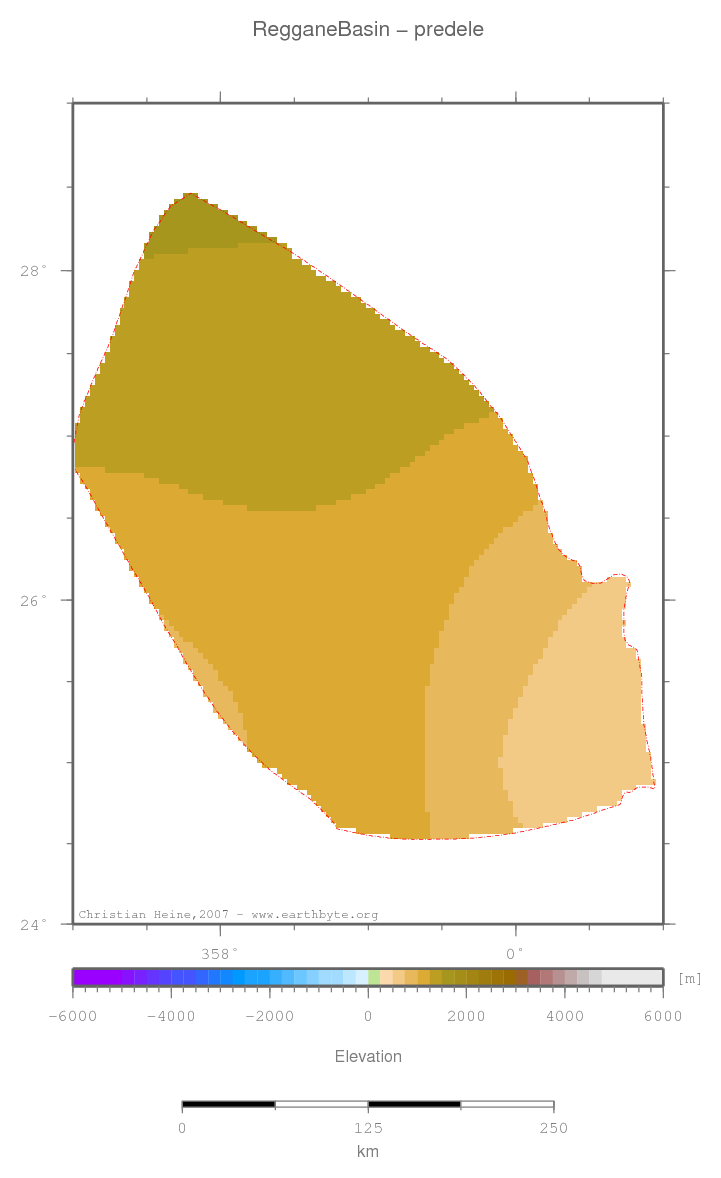

Predicted elevation
Reggane Basin location map
Statistics - Predicted elevation
Median 1151.570
Mean 1126.120
Scale 244.193
stdev 243.327
Z_min/Location 504.779/25.0°Lat 0.9°Lon
Z_max/Location 1559.520/28.4333°Lat -2.23333°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

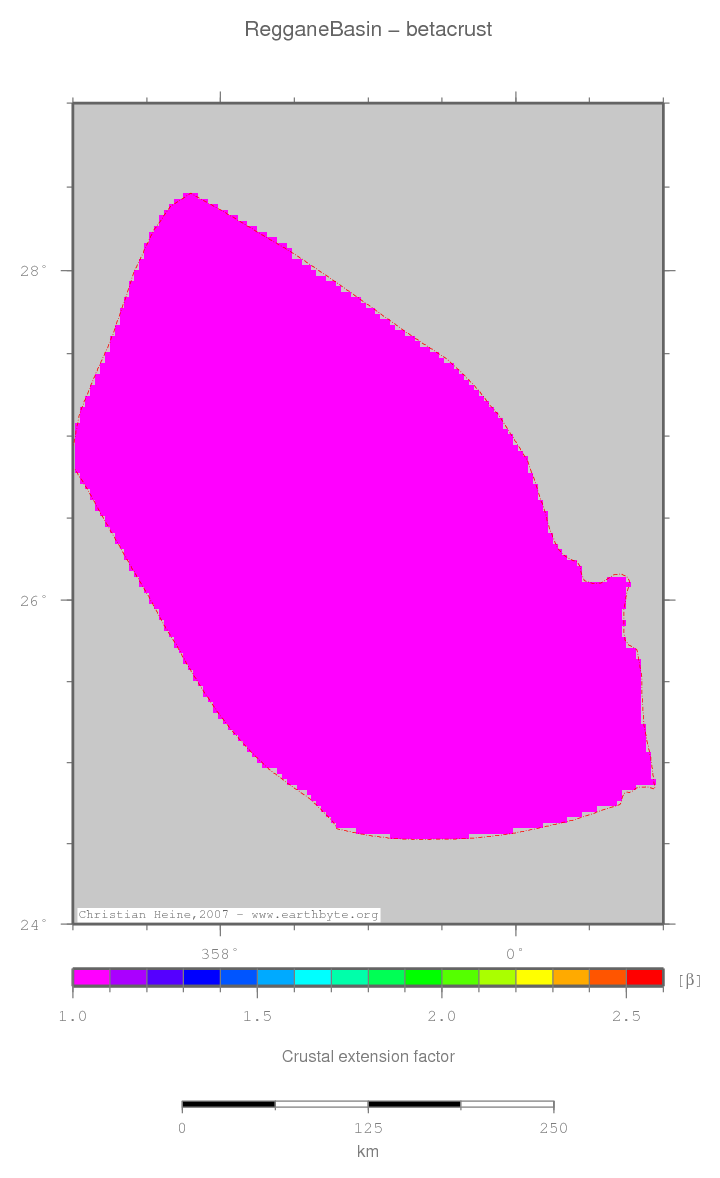

Beta (Crust)
Reggane Basin location map
Statistics - Beta (Crust)
Median 0.998
Mean 0.994
Scale 0.010
stdev 0.010
Z_min/Location 0.967/28.4333°Lat -2.23333°Lon
Z_max/Location 1.011/26.1°Lat 0.766667°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

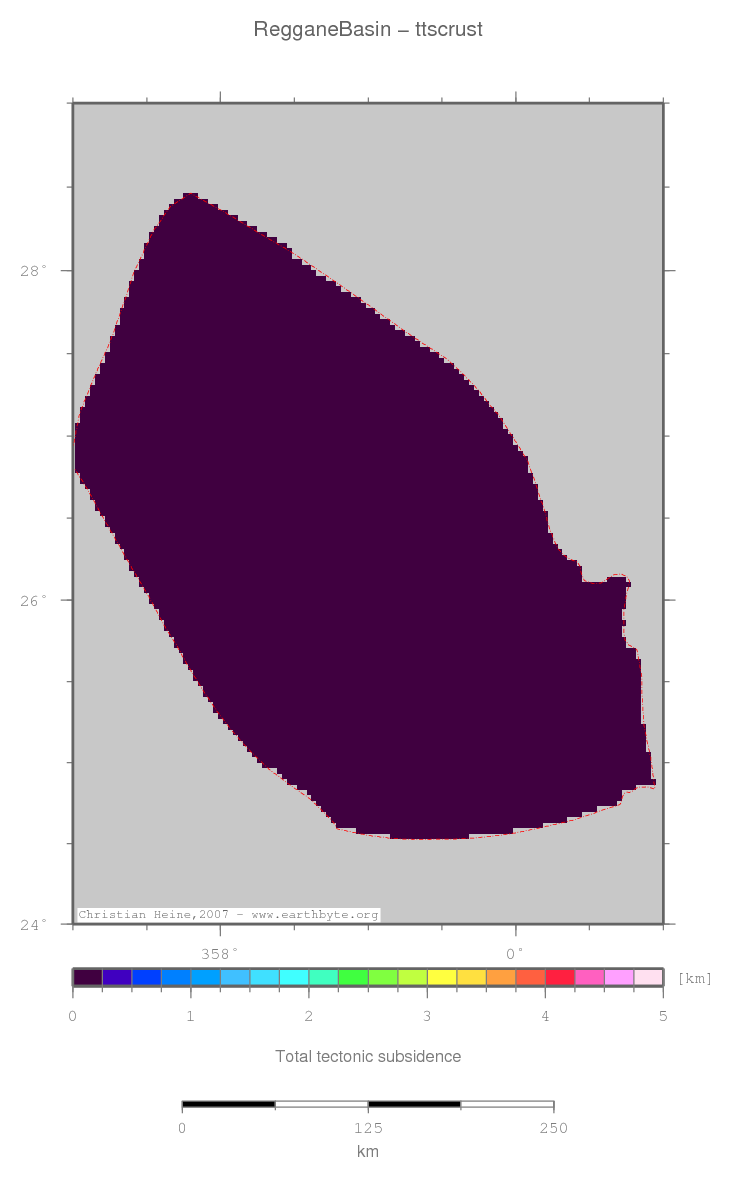

TTS (crust)
Reggane Basin location map
Statistics - TTS (crust)
Median -0.019
Mean -0.044
Scale 0.076
stdev 0.080
Z_min/Location -0.265/28.4333°Lat -2.23333°Lon
Z_max/Location 0.087/26.1°Lat 0.766667°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top

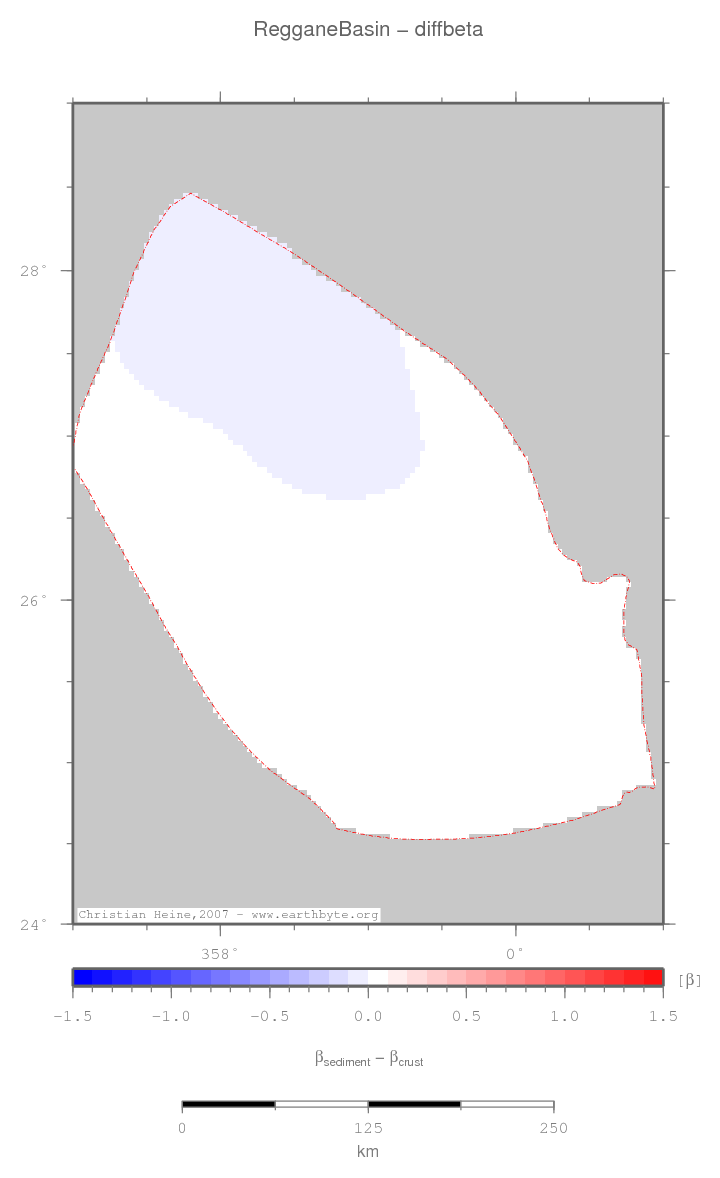

Differential Beta
Reggane Basin location map
Statistics - Differential Beta
Median 0.035
Mean 0.025
Scale 0.034
stdev 0.036
Z_min/Location -0.054/27.8°Lat -1.53333°Lon
Z_max/Location 0.087/24.6°Lat -1.2°Lon

Comments

For explanation to the data source or computation of this grid please follow this link. Clicking the image will open a high-res PDF of the map. Units in the statistics table are same as map units. Z_min and Z_max refer to the minima and maxima with their respective geographic locations.

↑ back to the top
